Employing the DV7 high-speed image processing platform, the camera enables 5.9K/60p, 4K/60p and 2K/120p recording for the highest resolution. In-camera 5.9K Cinema RAW Light Recording is also possible.

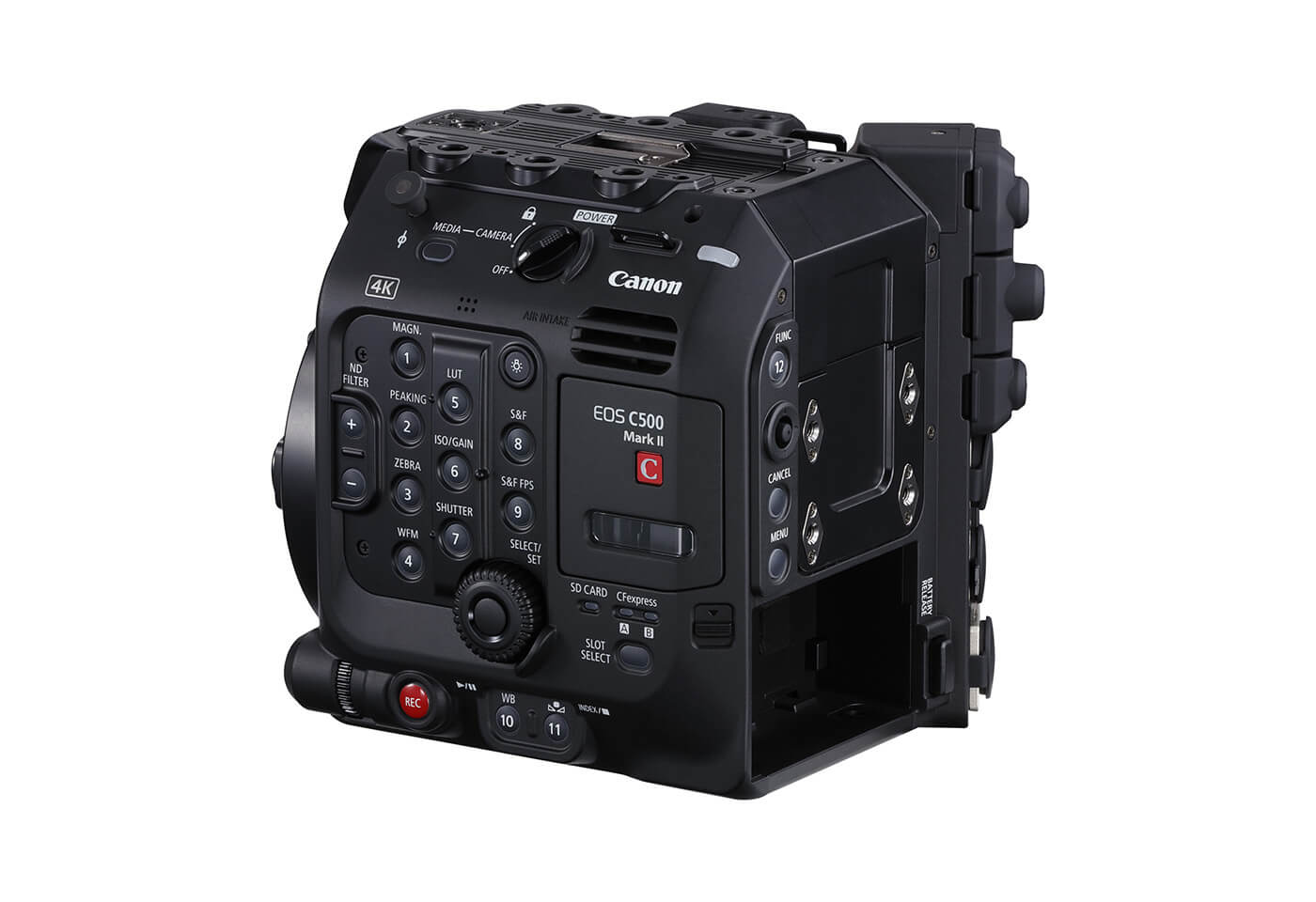

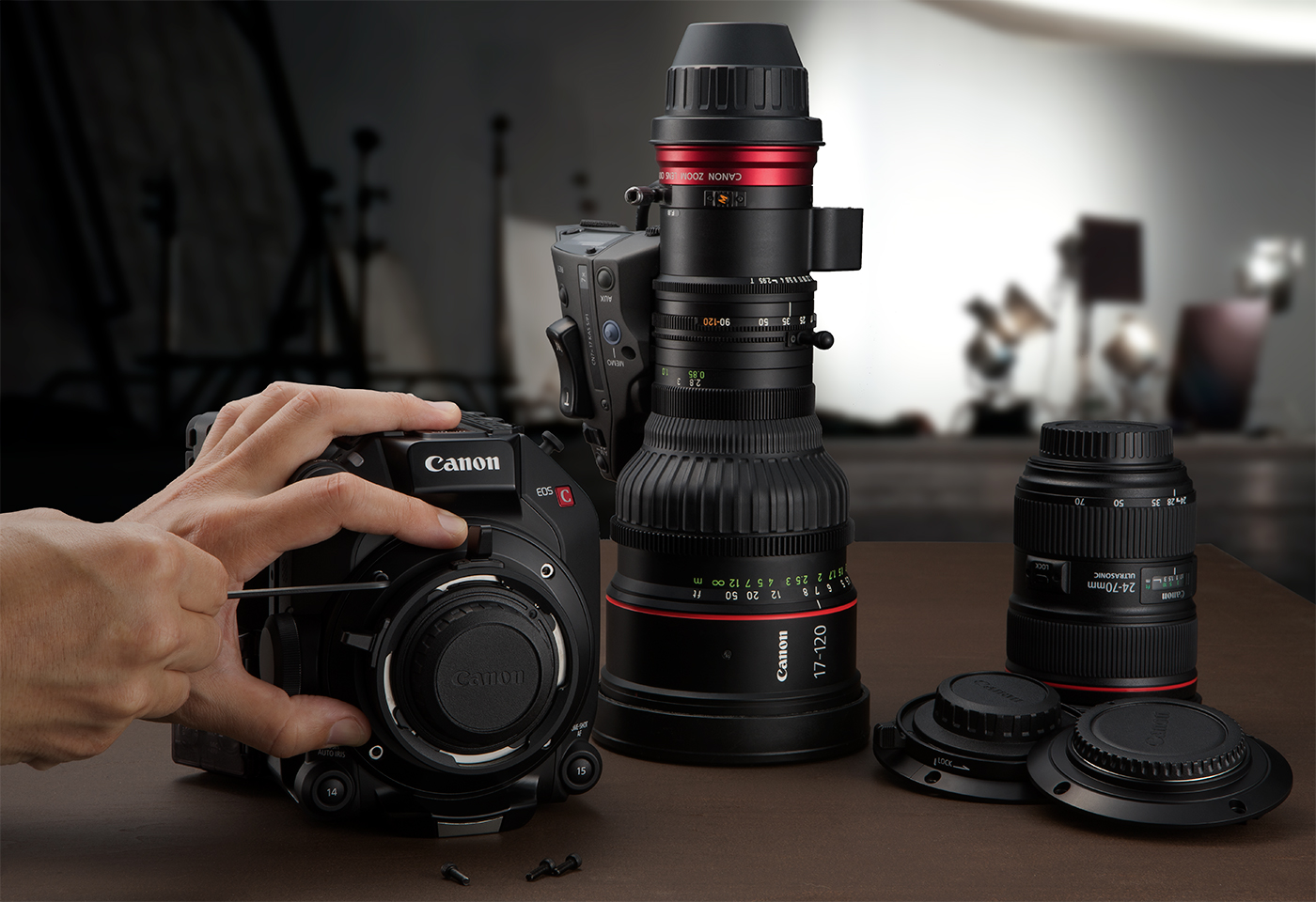

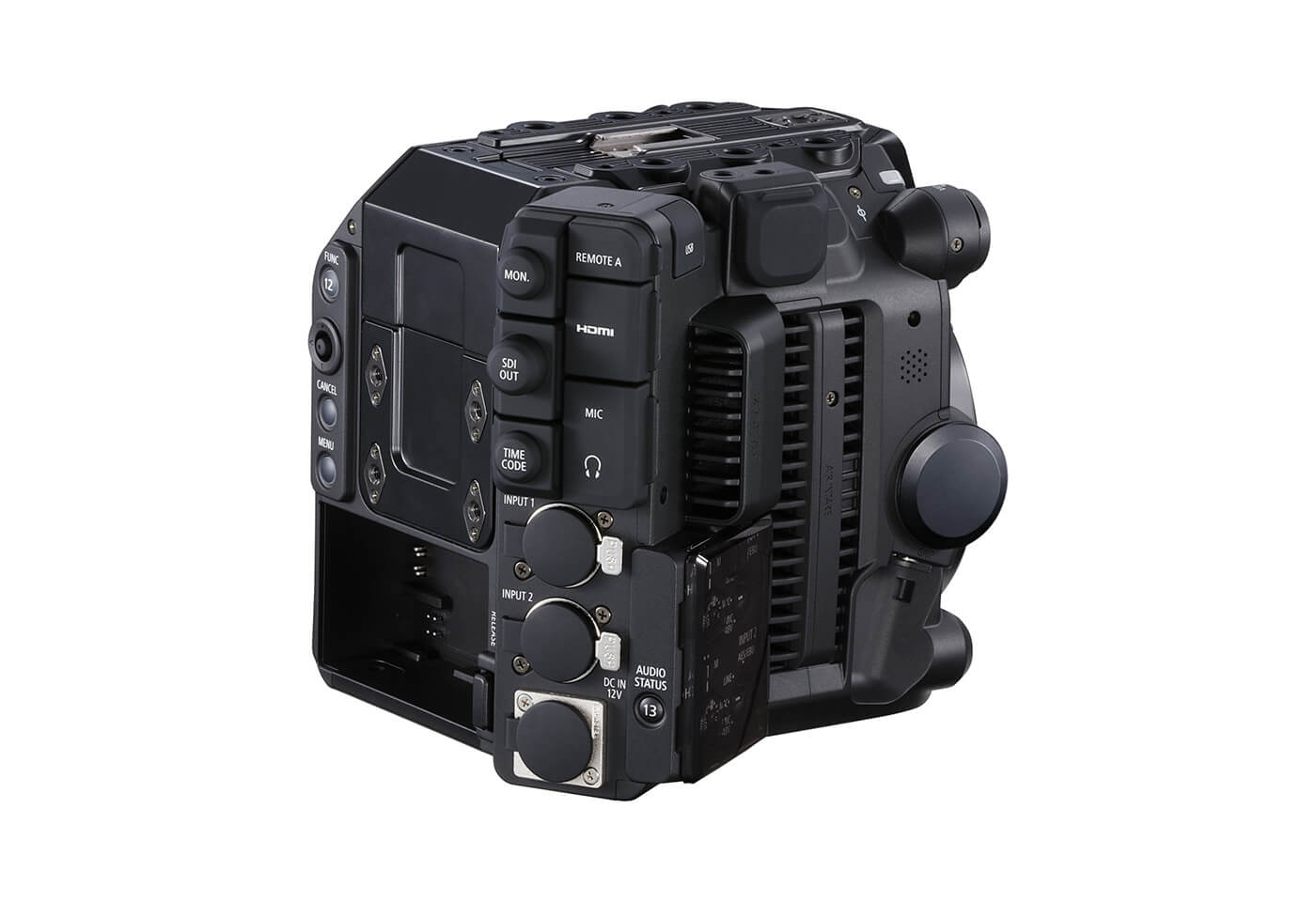

The EOS C500 Mark II has been produced in a revolutionary compact and modular design which allows users to freely customise the camera to meet their shooting needs, including the ability to interchange the camera's mounts and add on a number of optional extension units.
Employing Cinema RAW Light, a video format that allows for reduced file sizes while retaining video information, the EOS C500 Mark II makes possible the internal recording of RAW data without the use of an external recorder. The camera also supports XF-AVC, a video format that efficiently records compressed video data.
The EOS C500 Mark II supports two types of file formats to enable easier data ingestion for card recording, and makes 4K and HDR recording more accessible to the user.
The newly developed DIGIC DV7 image processor boasts high data processing power while suppressing unwanted noise.

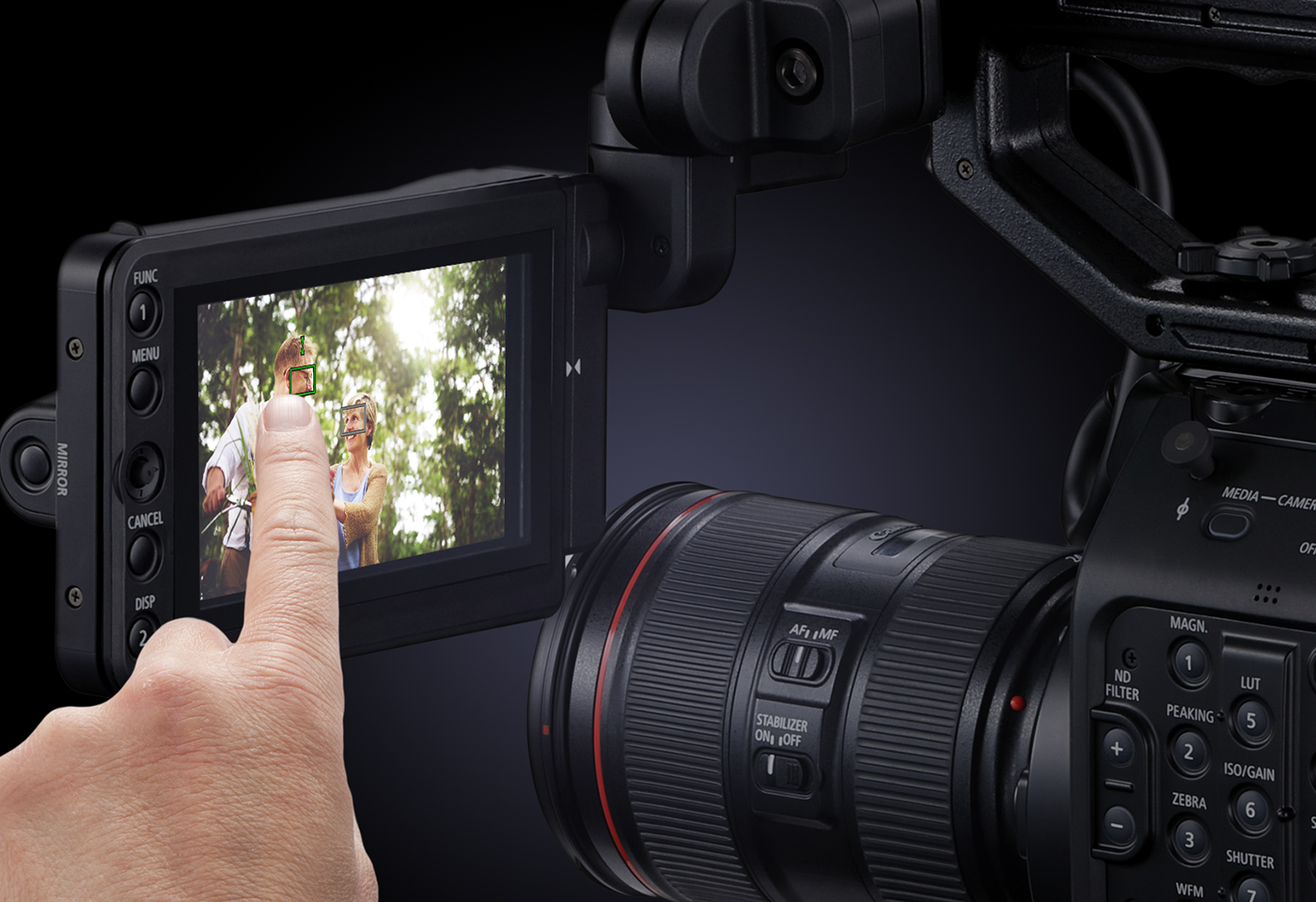

The EOS C500 Mark II boasts ground-breaking AF technology, using a CMOS sensor with a construction that combines the functions of both imaging and phase difference AF. When used with the LCD Monitor LM-V2 with touch panel support, the Dual Pixel CMOS AF provides sophisticated focusing with a single operator.
Craft your perfect cinematic camera with the EOS C500 Mark II. Own it with 1.99% PA Interest.Learn more
Full-frame CMOS [38.1x20.1 mm]
Approx. 18.69 million pixels

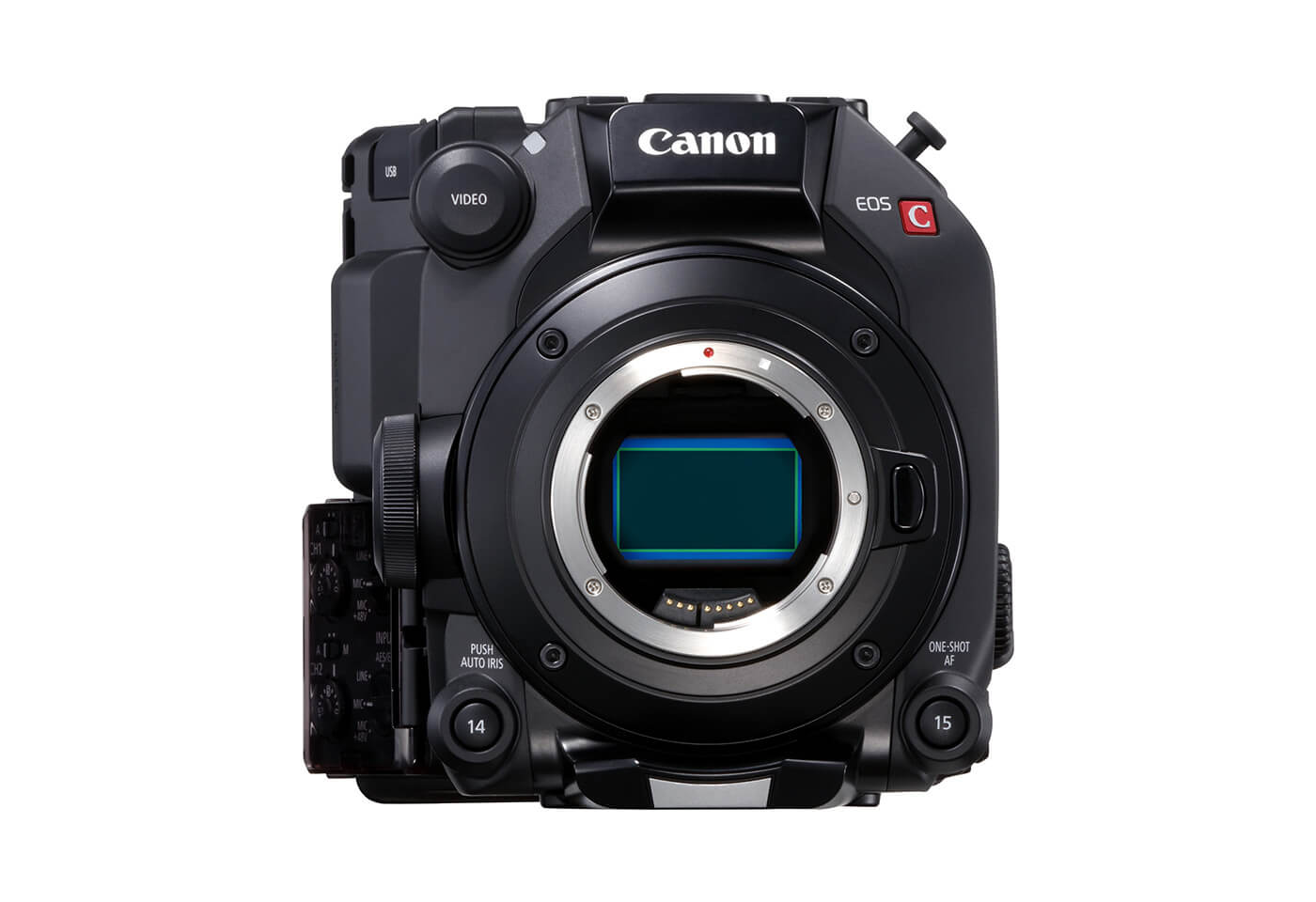

EF mount / EF Cinema Lock / PL (optional; user interchangeable) /B4 (optional)
RAW: 5.9K (FF),4K (Crop) 59.94p/50.00p (internal), 2K (Crop) 59.94p/50.00p (internal) XF-AVC: 4K/4K UHD/2K/FHD 59.94p/50.00p 2K,FHD (Crop) 59.94p/50.00p
LPCM 4ch (16 bit, 24 bit (MXF only)/48KHz)
5.9K, 4K, 4K (Crop), 2K:60 fps 2K (Crop):120 fps
CFexpress 2.0 Type B x 2, SD Card x1
4.3”, approx 2.76 million dot, touch panel
Dual Pixel CMOS AF, Face-detection AF compatible lens, AF speed/response, AF boost MF
Dual Pixel Focus Guide
Approx 153 x 148 x 168 mm
Approx. 1730 g
