How do I Direct Print? (Display on the LCD monitor / PictBridge)

Connect the camera to the printer and print directly from the camera.

Caution

To select items from the camera's LCD monitor, press the button to the left, right, top, or bottom , and then press the ⋖FUNC./SET⋗ button to specify the item.

Screens or menu listings may differ depending on the model being used.

As the actual locations of buttons / switches on cameras vary depending on the camera model, the illustrations that appear on this page may differ from your camera.

These instructions show how to print one image on one sheet of paper as an example.

1. Connect the camera to the printer.

Connect the [interface cable] to the camera's DIGITAL terminal.

Connect the other end of the cable to printer's USB terminal.

2. Turn the printer's power on.

3. Press the camera's ⋖Playback⋗ () button.

4. Display an image to print on the LCD monitor.

Make sure that the [SET] icon is displayed in the upper left corner of the LCD monitor, and then press the camera's ⋖FUNC./SET⋗ () button.

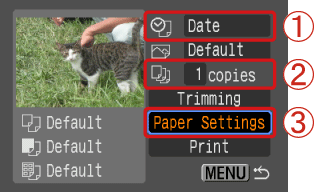

5. The screen for specifying the print settings appears.

Select [Date] for adding the date.

Specify the number of prints.

Select [Paper Settings], and then press the camera's ⋖FUNC./SET⋗ () button.

6. The screen for setting the paper size appears.

Select the paper size, then press the camera's ⋖FUNC./SET⋗ () button. In the image shown above, the [9 x 13 cm] size is selected.

7. The screen for setting the paper type appears.

Select the paper type, and then press the camera's ⋖FUNC./SET⋗ () button. In the image shown above, [Photo] is selected.

8. The layout (border) settings screen appears.

Select the layout type, and then press the camera's ⋖FUNC./SET⋗ () button. In the image shown above, [Bordered] is selected.

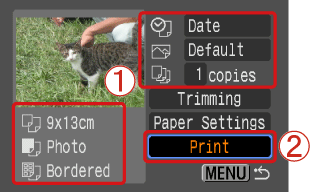

9. Return to the print setting screen.

Make sure that the settings are correct.

Select [Print] and press the camera's ⋖FUNC./SET⋗ () button to start printing.
