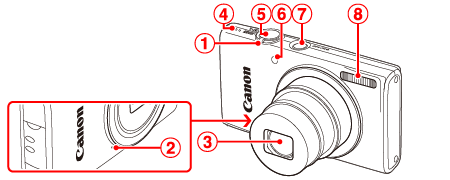

Front Panel
 | Zoom lever Shooting: <  (telephoto)> /
< (wide angle)>Playback: <  (magnify)> / < (index)> |  | Shutter button |
 | Microphone |  | Lamp |
 | Lens |  | Power button |
 | Speaker |  | Flash |

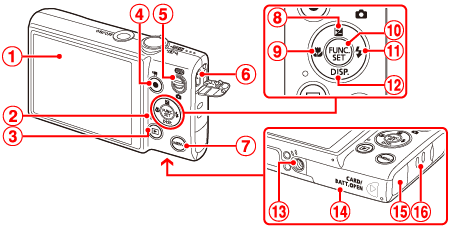

Back Panel
| Screen (LCD monitor) |  | < (Macro)> / Left button |
| Indicator |  | FUNC./SET button |
| < (Playback)> button |  | < (Flash)> / Right button |
| Movie button |  | < (Display)> / Down button |
| Mode switch |  | Tripod socket |
| AV OUT (Audio/video output) / DIGITAL terminal |  | Memory card/battery cover |
| < > button |  | DC coupler cable port |
| < (Exposure compensation)> / Up button |  | Strap mount |
Shooting (Information Display)
| Battery level |  | Red-eye correction |
| White balance |  | Spot AE point frame |
| My Colors |  | AF frame |
| Drive mode |  | Image stabilization |
| Eco mode |  | Date stamp |
| Self-timer |  | ISO speed |
| Grid lines |  | Time zone |
| Camera shake warning |  | AE lock, FE lock |
| Metering method |  | Shutter speed |
| Compression (image quality) / Resolution |  | Aperture value |
| Recordable shots |  | Exposure compensation level |
| Movie resolution |  | i-Contrast |
| Remaining time |  | Zoom bar |
| Digital zoom magnification, Digital tele-converter |  | IS mode icon |
| Shooting mode, Scene icon |  | Blink detection |
| Focusing range, AF lock |  | Exposure compensation bar |
 | Flash mode |

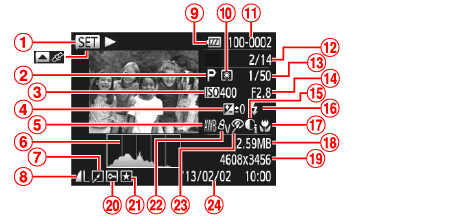

Playback (Detailed Information Display)
| Movies | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Shooting mode | | Aperture value |
| ISO speed, Playback speed | | i-Contrast |
| Exposure compensation level | | Flash |
| White balance | | Focusing range |
| Histogram | | File size |
| Image editing | | Still images: Resolution Movies: Playback time |
| Compression (image quality) / Resolution, MOV (movies) | | Protection |
| Battery level | | Favorites |
| Metering method | | My Colors |
| Folder number - File number | | Red-eye correction |
| Current image no. / Total no. of images | | Shooting date/time |
