Camera
PowerShot SX280 HS

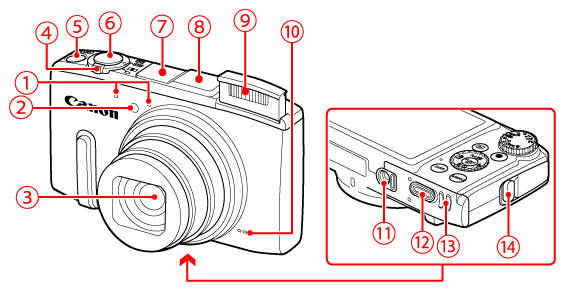

 | Microphone |  | GPS antenna |
 | Lamp |  | Flash |
 | Lens |  | Speaker |
 | Zoom lever Shooting: <  (telephoto)> / < (wide angle)>Playback: <  (magnify)> / < (index)> |  | Tripod socket |
 | Power button |  | DC coupler terminal cover |
 | Shutter button |  | Memory card/battery cover |
 | Wi-Fi antenna area |  | Strap mount |

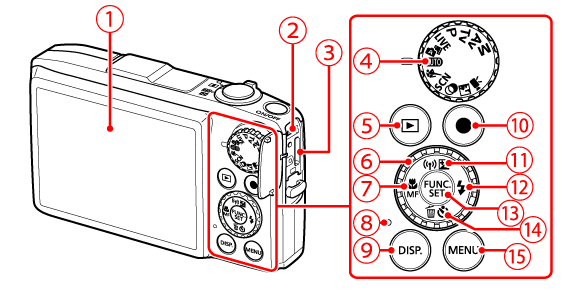

| Screen (LCD monitor) | | < (Display)> button |
| AV OUT (Audio/video output) / DIGITAL terminal | | Movie button |
| HDMITM terminal | | < (Exposure compensation)> / < (Wi-Fi)> / Up button |
| Mode dial | | < (Flash)> / Right button |
| < (Playback)> button | | FUNC./SET button |
| Control dial | | < (Self-timer)> / < (Single image erase)> / Down button |
| < (Macro)> / < (Manual
focus)> / Left button |  | < > button |
| Indicator |

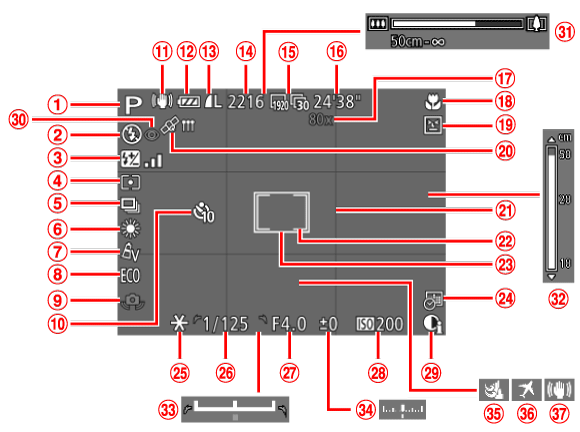

Shooting (Information Display)
| Shooting mode, Scene icon |  | GPS reception status |
| Flash mode |  | Grid lines |
| Flash exposure compensation / Flash output level |  | Spot AE point frame |
| Metering method |  | AF frame |
| Drive mode |  | Date stamp |
| White balance |  | AE lock, FE lock |
| My Colors |  | Shutter speed |
| Eco mode |  | Aperture value |
| Camera shake warning |  | ISO speed |
| Self-timer |  | i-Contrast |
| IS mode icon |  | Red-eye correction |
| Battery level |  | Zoom bar |
| Still image compression, Resolution |  | MF indicator |
| Recordable shots |  | Exposure shift bar |
| Movie quality |  | Exposure compensation level, Exposure level |
 | Remaining time |  | Wind filter |
 | Digital zoom magnification, Digital tele-converter |  | Time zone |
 | Focusing range, AF lock |  | Image stabilization |
 | Blink detection |

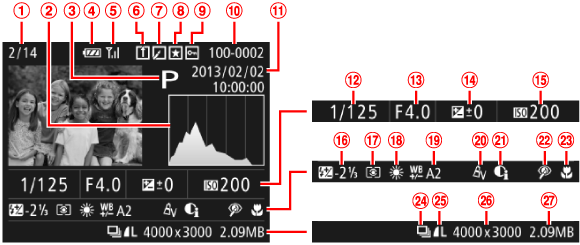

Playback (Detailed Information Display)
| Current image no. / Total no. of images | | ISO speed, Playback speed |
| Histogram | | Flash exposure compensation / Flash output level |
| Shooting mode | | Metering method |
| Battery level | | White balance |
| Wi-Fi signal strength | | White balance correction |
| Images have been saved on a computer | | My Colors |
| Image editing | | i-Contrast |
| Favorites | | Red-eye correction |
| Protection | | Focusing range |
| Folder number - File number | | Movies, Sports, Highspeed burst HQ |
| Shooting date/time | | Still image compression, Resolution, Playback time (movies) |
| Shutter speed (still images), Image quality / Frame rate (movies) | | Resolution |
| Aperture value, Movie quality | | File size |
| Exposure compensation level, Exposure shift level |
