How to perform the wireless LAN setup manually (Windows)

Wireless Setup

Caution

Before connecting the machine to the network, make sure that the computer and access point or router is connected.

Add (connect) the machine to the network.

A: Internet

B: Access point or wireless router, etc.

- Notes on Wireless Connection

The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment. For details, refer to your device’s instruction manual or contact its manufacturer.

In an office setup, consult your network administrator.

If you connect to a network that is not protected with security measures, there is a risk of disclosing data such as your personal information to a third party.

The machine cannot be used over a wireless and wired connection at the same time.

If an error message appears or if you have trouble with the network connection, refer to the printed manual: Network Setup Troubleshooting.

Place the machine and computer on the same network segment.

Caution

An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point.

Wireless Setup Using Easy Setup

Check the Information for Wireless Connection

In most cases, "Easy Setup" will be used to connect the machine to your access point or router. Before you continue, you must gather the information below which will be required during the installation.

Caution

For details on how to check the following information, refer to the manual of your access point or router, or contact its manufacturer.

- Access Point Name/Network Name:

* Also referred to as SSID.

An identifier to identify the specific access point.

- Network Key:

* Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.

A password required to set to prevent unauthorized access to communication.

1.

Use the or button (A) to display Setup, then touch the right FUNCTION button (B).

2.

Use the or button (C) to select Wireless LAN setup, then touch the OK button.

3.

Select Yes, then touch the OK button.

When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.

4.

Select Easy setup, then touch the OK button.

5.

Select the access point name you wrote down, then touch the OK button.

Caution

If you are living in an apartment, nearby access points in use may be detected.

The access point names with 2-byte characters are not displayed properly, however, can be selected.

6.

Make sure that one of the above screens is displayed, then touch the right FUNCTION button.

If you are living in an apartment, nearby access points in use may be detected. go to 9.

7.

Enter the network key you wrote down, then touch the left FUNCTION button (E).

Touch the center FUNCTION button (F) to switch character entry modes.

Caution

Enter upper and lower case letters of the alphabet correctly.

Caution

- Character Entry

This machine allows you to enter characters when an on-screen keyboard is displayed.

Follow the procedure below.

1. When an on-screen keyboard shown above is displayed, touch the center FUNCTION button (F) to switch to a keyboard having characters you want to use.

Four character sets are available: Upper-case alphabets, lower-case alphabets, numbers, and symbols. Each time you touch the center FUNCTION button, an on-screen keyboard is switched among them.

2. Select a character on the on-screen keyboard using the buttons (A)(C) then touch the OK button to enter it.

Entered characters are displayed on the upper section (G) of the on-screen keyboard.

3. Repeat 1 and 2 to enter more characters.

4. After you enter all characters you need, touch the left FUNCTION button (E).

* To insert a space, select Space on the on-screen keyboard and touch the OK button.

* To insert characters, select the section (G) of the screen using the or button, move the cursor to the character on the right of the target position using the or button, then enter characters.

* To delete a character, select the section (G) of the screen using the or button, move the cursor to the target character using the or button, then touch the right FUNCTION button (B).

8.

Make sure that the network key is correct, then touch the OK button.

9.

When the above screen appears, touch the OK button.

Caution

If Failed to connect to the access point. appears, touch the OK button, make sure that the network key is correct, then enter it again. If a connection still cannot be established, refer to the printed manual: Network Setup Troubleshooting.

Install the Software (Network Connection)

To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer’s hard disk. The installation process takes about 20 minutes. (The installation time varies depending on the computer environment or the number of application software to be installed.)

Caution

Quit all running applications before installation.

Log on as the administrator (or a member of the Administrators group).

Do not switch users during the installation process.

Internet connection may be required during the installation. Connection fees may apply. Consult the internet service provider.

It may be necessary to restart your computer during the installation process. Follow the on-screen instructions and do not remove the Setup CD-ROM during restarting. The installation resumes once your computer has restarted.

If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access.

Caution

Easy-WebPrint EX

Easy-WebPrint EX is Web print software that is installed on the computer when installing the supplied software. Internet Explorer 7 or later is required to use this software. An Internet connection is required for installation.

1.

Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive.

The setup program starts automatically.

Caution

If the program does not start automatically, double-click the CD-ROM icon in Computer or My Computer. When the CD-ROM contents appear, double-click MSETUP4.EXE.

2. Windows 7/Windows Vista

Windows XP -⋗ 3

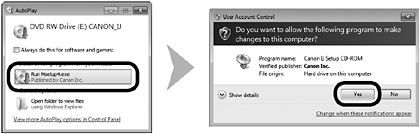

Click Run Msetup4.exe on the AutoPlay screen, then click Yes or Continue on the User Account Control dialog box.

If the User Account Control dialog box reappears in following steps, click Yes or Continue.

3.

Select your place of residence, then click Next.

Caution

If the Select Language screen appears, select a language, then click Next.

4.

Select a country or region, then click Next.

5.

Click Easy Install.

The drivers, application software, and on-screen manuals are installed.

Caution

If you want to select particular items to install, click Custom Install.

6.

Click Install.

7.

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8.

When the Printer Detection screen appears, click Next.

Caution

If the Printer Connection screen appears instead of the screen above, the connection method is not correctly selected in 7.

- Click Cancel and start again from 6, then be sure to select Use the printer on network in 7.

9.

When the Detected Printers List dialog box appears, select Canon MG8100 series, then click Next.

Caution

If the machine is not detected, Check Printer Settings dialog box is displayed. Refer to the printed manual: Network Setup Troubleshooting. Make sure there is no problem, then click Next again on the screen in 8.

10.

When the Setup Completion dialog box appears, click Complete.

Install the Software (Information)

1.

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

Necessary Information for the User Registration

When the serial number is not displayed on the registration screen automatically, input the serial number located inside the machine (as shown in the illustration).

Caution

If the power is on, the Print Head Holder will move when the Scanning Unit (Cover) (A) is opened.

Caution

The User Registration screen will only be displayed when Europe, Middle East, Africa is selected on the Select Your Place of Residence screen.

If the Extended Survey Program screen appears

If you can agree to Extended Survey Program, click Agree. If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine’s functionality.)

2.

Click Exit to complete the installation.

3.

Solution Menu EX starts.

Remove the Setup CD-ROM and keep it in a safe place.

Caution

The buttons displayed on Solution Menu EX may vary depending on the country or region of purchase.

Using the Machine from Additional Computers

Now that the wireless/wired connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine.

Other settings are not required.

To add computers from which to use the machine, go to [ Use from Additional Computers ]

Installing the XPS Printer Driver

In Windows 7 and Windows Vista SP1 or later, the XPS Printer Driver can be installed additionally. To install, perform from 1 in [ Install the Software (Network Connection) ]. Click Custom Install in 3, then select XPS Printer Driver in the Custom Install screen.

Use from Additional Computers

If the machine is already connected to a wireless connection, it can be used from additional computers on the same network.

To use from additional computers

A: Computer from which the machine can be used currently

B: Additional computers on the same network

It enables the computer to use the machine.

1. Insert the Setup CD-ROM into the computer from which you want to use the machine.

2. Follow the on-screen instructions to install the software.

Other settings are not required.

Caution

For details on the software installation procedure, refer to [ How to perform the wireless LAN setup so that other computers can share the same printer (Windows) ]
