Camera
PowerShot G9 X Mark II

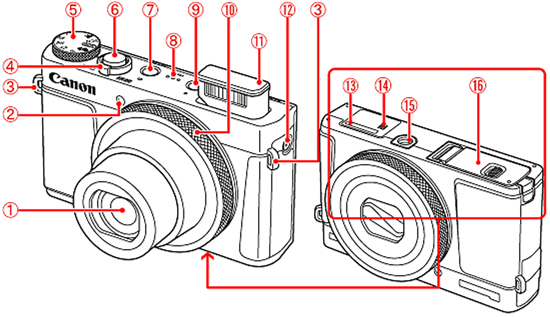

 | Lens |  | [  (Playback) ] button |
 | Lamp |  | Control ring |
 | Strap mount |  | Flash |
 | Zoom lever Shooting: [  (telephoto)] / [  (wide angle)]Playback: [  (magnify)] / [  (index)] |  | [  (Wi-Fi) ] button |
 | Mode dial |  | Serial number (Body number) |
 | Shutter button |  |  (N-Mark)*1 |
 | Power button |  | Tripod socket |
 | Speaker |  | Memory card/battery cover |
| *1: Used with NFC features | |||

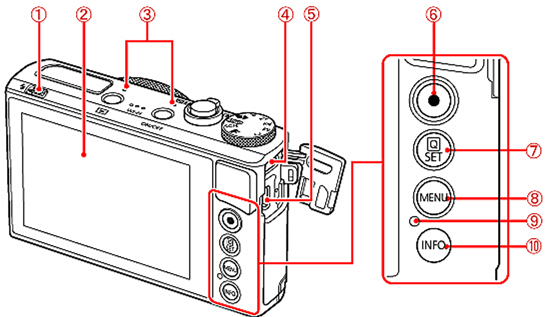

| [  (Flash pop up)] switch | | Movie button |
| Screen (monitor)*2 | | [  (Quick Set menu/Set)] button |
| Microphone | | [MENU] button |
| DIGITAL terminal | | Indicator / USB charge lamp |
| HDMI (TM) terminal | | [INFO. (Information)] button |
| *2: Gestures may not be detected as easily if you apply a screen protector. In this case, increase the sensitivity of the touch-screen panel | |||

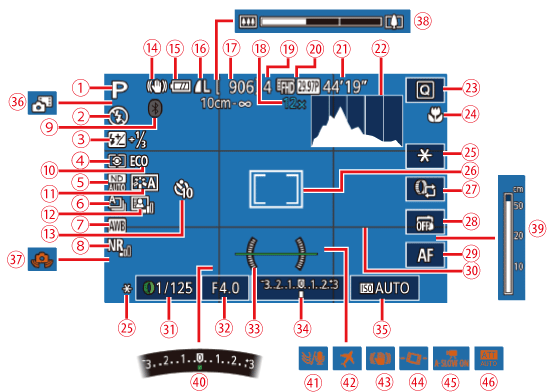

Shooting (Information Display)
| Shooting mode, Scene icon |  | Focus range, AF lock |
| Flash mode |  | AE lock, FE lock |
| Flash exposure compensation / Flash output level |  | AF frame, Spot AE point frame |
| Metering method |  | Control ring function switching |
| ND filter |  | Touch Shutter |
| Drive mode, AEB shooting, Focus bracketing |  | Manual focus switching |
| White balance |  | Grid lines |
| High ISO speed noise reduction |  | Shutter speed |
| Bluetooth connection status |  | Aperture value |
| Eco mode |  | Electronic level |
| Picture Style |  | Exposure level |
| Auto Lighting Optimizer |  | ISO speed |
| Self-timer |  | Hybrid Auto mode |
| IS mode icon |  | Camera shake warning |
| Battery level |  | Zoom bar |
| Still image compression, Recording pixel setting |  | MF indicator |
 | Recordable shots |  | Exposure compensation |
 | Zoom magnification, Digital tele-converter |  | Wind filter |
 | Maximum continuous shots |  | Time zone |
 | Movie quality |  | Image stabilization |
 | Remaining time |  |  Auto Level |
 | Histogram |  | Auto Slow Shutter |
 | Quick Set menu |  | Attenuator |
During Playback

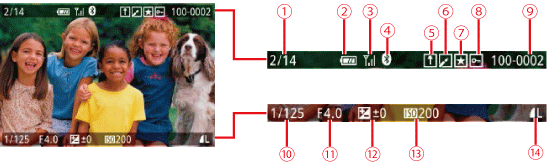

Info Display 1
| Current image / Total images | | Protection |
| Battery level | | Folder number - File number |
| Wi-Fi signal strength | | Shutter speed |
| Bluetooth connection status | | Aperture value |
| Image Sync complete | | Exposure compensation level |
| Edited*1 | | ISO speed |
| Favorites | | Image quality*2 |
| *1Displayed for images with a creative filter, resizing, cropping, or red-eye correction applied. *2 Cropped images are labeled with [  ]. | |||

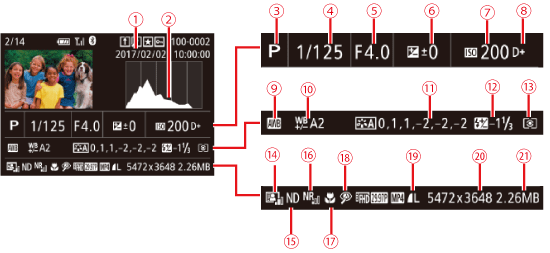

Info Display 2
| Shooting date/time | | Flash exposure compensation |
| Histogram | | Metering mode |
| Shooting mode | | Auto Lighting Optimizer |
| Shutter speed | | ND filter, Short clip playback effect, Miniature movie playback speed, Frame rate/interval time of time-lapse movies or star time-lapse movies |
| Aperture value | | High ISO speed noise reduction |
| Exposure compensation level | | Focus range |
| ISO speed | | Red-eye correction |
| Highlight tone priority | | Image quality* |
| White balance | | Recording pixel setting |
| White balance correction | | Image size |
| Picture Style setting details | ||
| *Cropped images are labeled with [ ]. | |||
Info Display 3
Shows GPS information and an RGB histogram. Information on the top of the screen is the same as for Info Display 2.
Info Display 4
Shows white balance information. Information on the top of the screen is the same as for Info Display 2.
Info Display 5
Shows Picture Style information. Information on the top of the screen is the same as for Info Display 2.
