Copying Your Recordings to an External Video Recorder with Analog Audio/Video Inputs

Content Id: 8200759800


Solution

You can copy your movies by connecting the camcorder to a VCR or a digital video recorder with analog audio/video inputs. Video output will be in standard definition, although the original scenes are in high definition.

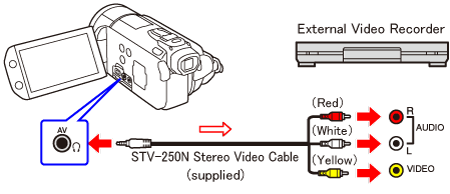

1. Connect the camcorder to the VCR using the STV-250N Stereo Video Cable.

2. Turn on the camcorder and set it to Playing back movies mode.

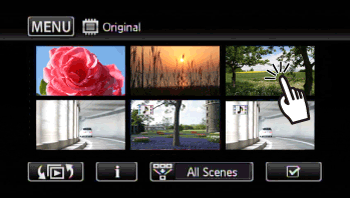

If the camcorder is in photo viewing mode, touch [ ], and then select [Original] or [Playlist].

3. Verify that [ AV/Headphones] is set to [AV].

4. External device: Load a blank disc and set the device to record pause mode.

5. Camcorder: Locate the scene you wish to copy and pause the playback shortly just before the desired scene.

6. Camcorder: Resume playback.

By default, onscreen displays will be embedded in the output video signal. You can change the displays by repeatedly pressing ⋖ DISP. ⋗.

7. External device: Start recording when the scene you wish to copy appears; stop recording when it ends.

8. Camcorder: Stop playback.

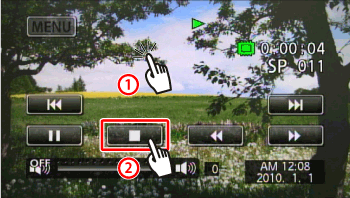

Touch the LCD screen of the camcorder to display the playback controls.

Touch the [ ] button to stop playback.

Caution

We recommend powering the camcorder using the compact power adapter.
For detailed operation instructions, please see the instruction book or the Web site of the device you are using.
