imageCLASS MF4570dw Support
FAQs & troubleshooting

Checking the Available Connection Methods for the Wireless LAN

Content Id: 8201295100

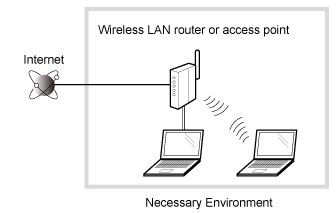

Be Sure to Check Before Setting

The setup of the computer and wireless LAN or access point are must be completed.

If it is not set up, you will not be able to use the machine on the wired LAN network.

For the details, refer to the instruction manual for your network device or contact its manufacturer.


Precautions when connecting to a wireless LAN

The structure of your computer or networked device, the existence of router functions, setting methods and security settings vary depending on your environment.
You can connect the machine to wireless LANs or wired LANs, but you cannot use both at the same time. When using a wireless LAN connection, do not connect a LAN cable to the machine. This may cause malfunctions.
If using the machine in your office, consult with your network administrator.

Switching the Connection Method to Wireless LAN

1. Press [ ] (Menu).

2. Press [ ] or [ ] to select ⋖Network Settings⋗, and then press [OK].

The next screen is displayed for approximately 5 seconds.

Turn OFF/ON using Step 5. Turning this OFF/ON is not required.

3. Press [ ] or [ ] to select ⋖Select Wired/Wireless LAN⋗, and then press [OK].

4. Press [ ] or [ ] to select ⋖Wireless LAN⋗, and then press [OK].

5. Turns the machine OFF/ON when the following screen disappears.

It is necessary to turn the machine OFF/ON to activate the settings.

Turn OFF the machine and wait for at least 10 seconds before turning it back ON.

Selecting a Method for Setting the Wireless LAN

Two methods are provided for connecting to the wireless LAN or access point, connecting using WPS (Wi-Fi Protected Setup) function or connecting manually.

Select the appropriate setting method after checking the following functions on the wireless LAN or access point you are using.

When WPS button is placed


Checking WPS functions

Check whether the box or body of the wireless LAN router or access points that you are using supports the WPS function.

As an example, a symbol such as shown below can be seen on the shipping box or machine.


- This supports WPS (Wi-Fi Protected Setup).

If you are not sure if WPS is supported, contact the wireless LAN router or access point manufacturer.

When WPS button is not placed

Setup manually.

[ Setting the Wireless LAN Manually ]
