imageCLASS MF4570dw Support
FAQs & troubleshooting

Checking the Access Point Name or Network Key (Windows)

Content Id: 8201295400

Checking the SSID or Network Key of the Wireless LAN Router/Access Point

If the SSID and network key are not indicated on the body of the wireless LAN router or access point or if you are not sure because they are changed, you can check using Canon MF/LBP Wireless Setup Assistant.

* Canon MF/LBP Wireless Setup Assistant is included in the supplied User Software CD-ROM in the machine.

1. Insert the User Software CD-ROM.

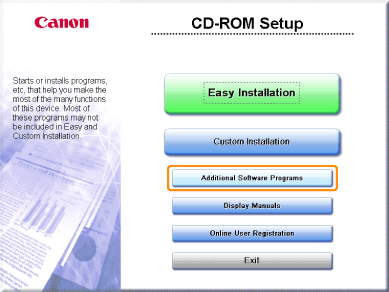

2. Click [Additional Software Programs].

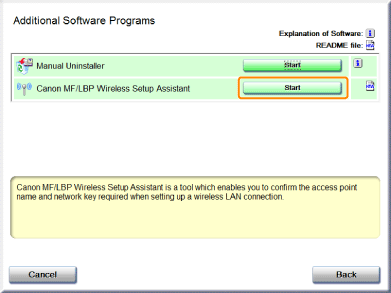

3. Click [Start] for "Canon MF/LBP Wireless Setup Assistant."

4. Read the License Agreement. If you agree click [Yes].

5. The information for the wireless LAN router or access point is displayed.

Write down the information outlined in orange.

If a multiple access point appears

Write down all of the displayed SSIDs.


When wireless LAN router or access point are not displayed

Press the "Update" button.

When information is not displayed even after pressing the "Update" button, check that the settings for the computer and wireless LAN or access point are complete.
