Sending Images to a Computer Using EOS Utility Ver.3.x (Wi-Fi Function) (EOS 6D Mark II)

You can save images from the camera to a computer via Wi-Fi using EOS Utility (EOS software).

This page describes how to connect the camera and a computer directly via Wi-Fi.

Caution

Step 1. Prepare Necessary Items

1. Check your computer environment.

To check if your computer supports connection to a camera via Wi-Fi, refer to the "Related Information" section at the end of the page.

2. Make sure that EOS Utility is installed on the computer.

Caution

Step 2. Configure Basic Settings for the Camera

Configure necessary settings before using the wireless LAN functions of the camera.

1. Set the camera's power switch to ⋖ON⋗.

2. Press the ⋖MENU⋗ button to display the menu screen.

3. Press the ⋖ ⋗ button, then select the [ ] tab.

4. Select [Wireless communication settings] under the [ ] tab, then press ⋖ ⋗.

5. Select [Wi-Fi settings].

6. Select [Wi-Fi].

7. Select [Enable].

8. When the screen below appears, press ⋖ ⋗.

9. Enter the nickname. You can enter any characters between 1 to 8 characters in length.

When you finish entering characters, press the ⋖MENU⋗ button.

*For more information on using the keyboard, please refer to "Operation Reference: Virtual Keyboard Operation".

Caution

10. When the following screen appears, select [OK], then press ⋖ ⋗.

Press the ⋖ MENU ⋗ button to return to the [Wireless communication settings] screen.

11. Select [Wi-Fi function].

12. The screen to select a device for connection is displayed.

This completes the basic settings of the camera.

Step 3. Connect the Camera and the Computer

1. [ ] Select [Remote control (EOS Utility)].

2. Select [Register a device for connection].

3. Check the SSID and password.

Check the SSID (network name) ( ) and password ( ) displayed on the camera’s LCD monitor.

Caution

4. Select the SSID, then enter the password.

On the computer’s network setting screen, select the SSID checked in step 3 ( ).

For the password, enter the password checked in step 3 ( ).

5. Select [OK] and press ⋖ ⋗.

6. The following message is displayed.

"******" represents the last six digits of the MAC address of the camera to be connected.

7. Start EOS Utility.

For Windows 8.1, click [ ] on the bottom left side of the [Start] screen. On the [Apps] screen that is displayed, click [EOS Utility].

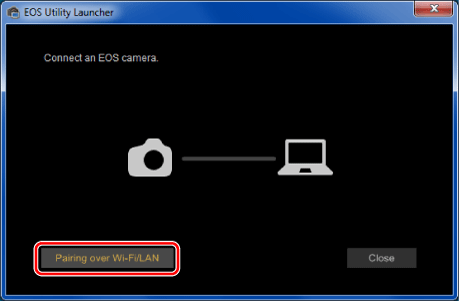

8. In EOS Utility, click [Pairing over Wi-Fi/LAN].

If a firewall-related message is displayed, select [Yes].

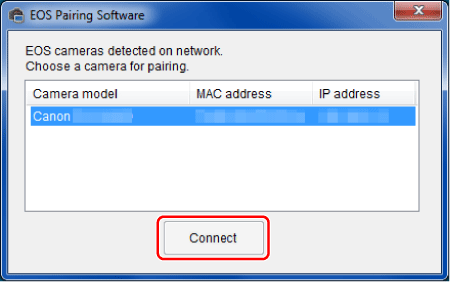

9. Select the camera to connect to, then click [Connect].

Caution

10. When the camera detects the computer on which you clicked [Connect] in step 9, the screen below is displayed.

Select [OK], and then press ⋖ ⋗.

11. The [ Wi-Fi on] screen will appear.

Caution

To reconnect the camera via Wi-Fi to a computer that you have connected to and registered connection settings for in the past, turn the camera’s power switch on, select [Wi-Fi function] on the [Wireless communication settings] screen, select the item to connect to via Wi-Fi from the displayed history, press ⋖ ⋗ and start EOS Utility on the computer.

If the camera screen auto-switches during EOS Utility operation procedures, display the menu by pressing the ⋖MENU⋗ button, then press the ⋖ ⋗ button to display the [ ] tab. Select [Wireless communication settings] under the [ ] tab, and then select [Wi-Fi function] to go back to the [ Wi-Fi on] screen.

Connecting the camera and the computer is now complete.

Step 4. Send Images to the Computer

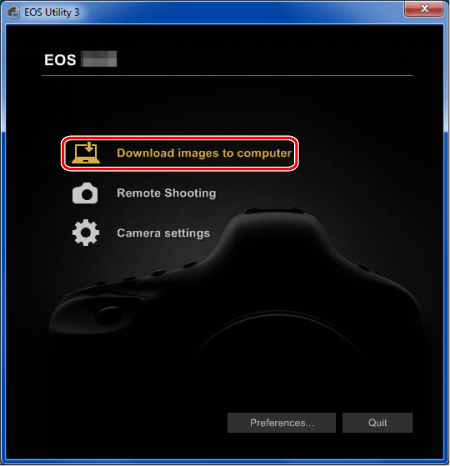

1. After the main window of EOS Utility appears, click [Download Images to Computer].

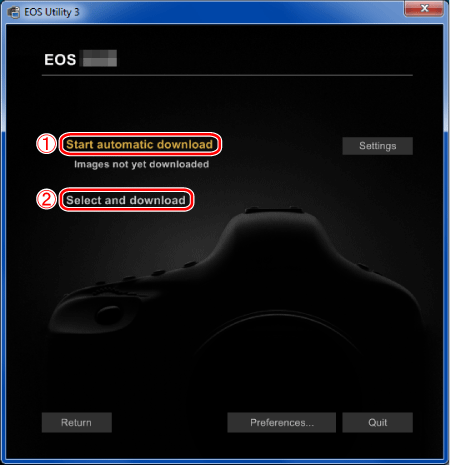

2. When the following window appears, click either ( ) to [Start automatic download] or ( ) to [Select and download] images.

Caution

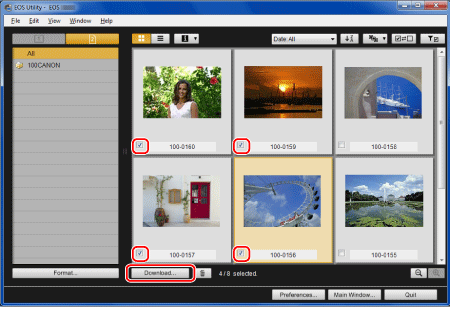

3. If you have selected [Select and download] images in step 2, the viewer window appears and the images in the memory card are displayed in a list.

In the displayed list of images, checkmark the images to download and click [Download] (here, 4 images are selected).

If you have selected [Start automatic download], proceed to step 5.

Caution

You can click the [ ] button to change the thumbnail order.

For movie files, the [ ] icon appears on the top left of the image.

You can click [ ] in the upper right of the window to sort the images with various conditions and choose images you want to download.

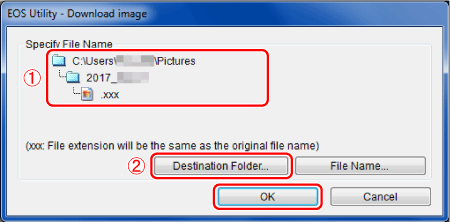

4. The [Download image] dialog box appears. To change the save destination, click [Destination Folder] and in the dialog box that appears, change the destination. Click [OK].

Displays the save destination on the computer

Specify the save destination

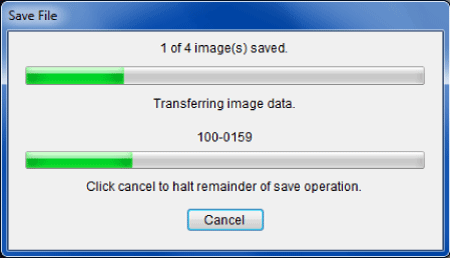

5. The images are downloaded to your computer.

6. When images have been downloaded, click [Quit] and close EOS Utility.

Downloading images is now complete.

Operation Reference: Virtual Keyboard Operation

For details on keyboard operation when registering camera’s nickname, refer to the following.

You can change the nickname later on the [Wireless communication settings] screen.

Changing the entry area	Press the < > button to toggle between the top and bottom entry areas.
Moving the cursor	Press the < > < > keys in the top area to move the cursor.
Entering text	In the bottom area, press the < > < > or < > < > keys to select a character, then press < > to enter it. You can check how many characters you have entered and how many more can be entered by referring to [*/*] on the upper right of the screen.
Changing the entry mode*	Select [ ] at the bottom right of the bottom entry area. Each time you press < >, the entry mode will change as follows: Lower case -> Numerals / Symbols 1 -> Numerals / Symbols 2 -> Upper case. * When [Touch control: Disable] is set, you can enter all characters on one screen.
Deleting a character	Press the < > button to delete one character.
Finishing the text entry	Press the < MENU > button to confirm what you have entered and exit. If a confirmation dialog is displayed, select [OK] to exit.
Canceling the text entry	Press the < INFO > button to cancel text entry and exit. If a confirmation dialog is displayed, select [OK] to exit.
