Configuring the Flash Settings (PowerShot SX540 HS)

Follow the steps below to configure the flash settings.

Fires for each shot (On).

If you set the [Flash] to [Auto], the [Flash] will not fire in bright environments. However, if for example you take a shot of people against a backlight, the [Flash] will fire even when you shoot in daylight to prevent the faces from becoming obscured.

The instructions below refer to the setting that makes the [Flash] fire for each shot (On).

Shooting Mode with Limited Flash Settings

Caution

The instructions in this section apply to a camera with the [Shooting Mode] set to [Program AE] ( ).

1. Turn on the [Power] on the camera.

2. Lift the [Flash] with your finger.

3. Press the [ ] button.

Caution

The setting screen cannot be accessed by pressing the [ ] button when the flash is lowered. First, lift the flash with your finger.

If the flash fires, vignetting may occur.

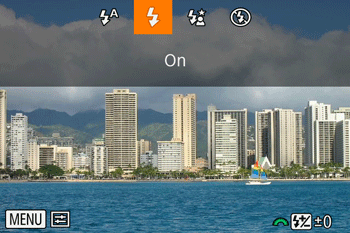

4. The flash setting screen will appear.

Press the [ ], [ ] buttons to select [ : On ], and then press the [ ] button.

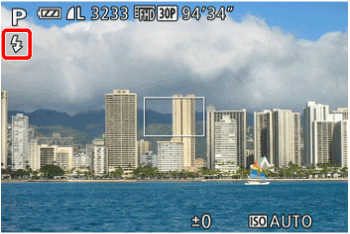

5. When the icon changes to [ ], the configuration of settings is complete.

The flash cannot be configured in the following shooting modes.
... Not configurable

Function

Shooting mode

Flash

*1

*1

*1

*1 Not available, but switches to in some cases.

Caution

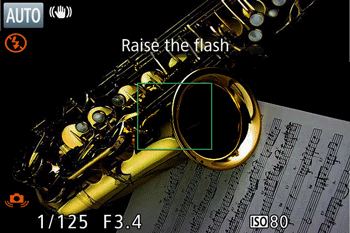

When [Raise the Flash] is Displayed

When shooting in a dark environment in the [AUTO] mode or in the [Plus Movie Auto] mode, the message [Raise the Flash] may appear on the LCD screen. If that happens, lift the flash with your finger.

If you don't lift the flash, it will not fire. (The flash is never lifted automatically.)

When the message above appears, lift the flash with your finger as described below.

Flash Range

If your shots are dark despite the flash firing, move closer to the subject.

See the table below for details on the flash range.

Maximum Wide Angle	50 cm - 5.5 m (1.6 – 18 ft.)
Maximum Telephoto	1.3 m - 3.0 m (4.3 – 9.8 ft.)
