Sending Images to an Android Smartphone (Wireless Connection) (PowerShot SX740 HS)

Introduction

Before connecting to the camera, you must install the free dedicated Camera Connect app on the smartphone.

Camera Connect can be installed from the Google Play. You can also access the Google Play from a QR code that you can display on the camera when registering the smartphone on the camera.

Use the latest version of the smartphone OS.

Activate Bluetooth* and Wi-Fi on the smartphone.

*Bluetooth low energy technology (hereafter referred to as "Bluetooth")

Caution

In the following explanation, smartphone setting procedures are indicated by the

icon, and camera setting procedures are indicated by the

icon.

Please refer to the related information for details on the smartphones which can be connected with a camera wirelessly.

Connect via Bluetooth

1. Confirm the smartphone's settings.

Make sure that [Airplane mode] is not set.

Turn [Wi-Fi] to [ON].

Set the [Bluetooth] switch to [ON].

2. Download Camera Connect from the Google Play and install it on the smartphone.

3. Press the button.

Caution

When the [Nickname] screen appears, press the button.

To use the nickname displayed, press the

button.

Nicknames are 1 – 8 characters and can be changed later. For more information on using the keyboard, please refer to "Using the On-Screen Keyboard".

Press the

/

buttons to choose [OK] , and then press the

button.

Caution

If the following screen appears, press the

/

buttons, the screen for step 4 will appear.

4. Press the button.

5. Press the button.

6. Press the / buttons to choose [ 1 ].

7. Press the / buttons to choose [Wireless communication settings], then press the button.

8. Press the / buttons to choose [Bluetooth function], then press the button.

9. Press the / buttons to choose [Bluetooth function] again.

10. Press the / buttons to choose [Enable], then press the button.

11. Press the / buttons to choose [Pairing], then press the button.

12. Press the / buttons to choose [Do not display], then press the button.

13. A message is displayed indicating that pairing is in progress.

14. Touch the [Camera Connect]( ) application icon on the smartphone to start Camera Connect.

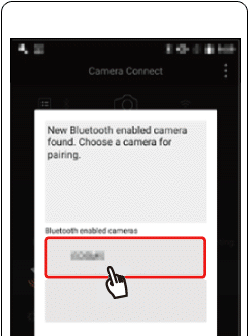

15. After the camera is recognized, a camera selection screen is displayed.

Touch the camera to connect.

16. Press the / buttons to choose [OK], press the button.

17. Press the button of this screen.

The Pairing between the camera and the smartphone should be complete, and connected.

Caution

Battery life may be shorter when you use the camera after pairing, because power is consumed even when the camera is off.

Before bringing the camera to places where the use of electronic devices is restricted, go to the [

1 ] menu, [Wireless communication settings], set [Bluetooth function] to [Disable], to avoid having the camera ready for Bluetooth communication even when it is off.

Bluetooth connection will be disconnected when the battery is taken out while connected via Bluetooth. The connection will be re-established once the battery is placed.

18. Choose [Images on camera] in Camera Connect.

19. Use the smartphone to import images from the camera to the smartphone.

When the camera is connected to the smartphone, a list of the images on the camera will appear in Camera Connect. Tap [Select] appearing in the upper right of the screen.

20. After the screen refreshes, choose the desired images (), and then touch [ ] on the bottom of the screen ().

To select all images at once, press the [

] icon in the upper right of the screen, and then touch [

] on the bottom to save them on your smartphone.

Caution

A screen to set [Image save size] may be displayed, so choose an option and press [OK].

21. After the images have been saved, touch [ ] appearing in the upper right of the screen.

22. Touch [ ] in the upper left of the screen to return to the menu screen.

23. To end the connection, touch the [ ] icon displayed in the upper right of the screen.

24. Touch [Yes].

Caution

To check the information of the smartphone connected via Bluetooth, go to [

1 ] tab ⋗ [Wireless communication settings] ⋗ [Bluetooth function] to [Check/clear connection info]. You can also choose [ Bluetooth address ] to check the camera’s Bluetooth address.

To pair with another smartphone, clear the connection of the previously connected device first.

Connect via the Wi-Fi Menu

1. Confirm the smartphone's settings.

Make sure that [Airplane mode] is not set.

Turn [Wi-Fi] to [ON].

Set the [Bluetooth] switch to [ON].

2. Download Camera Connect from the Google Play and install it on the smartphone.

3. Press the button.

Caution

When the [ Nickname ] screen appears, press the button.

To use the nickname displayed, press the

button.

Nicknames are 1 – 8 characters and can be changed later. For more information on using the keyboard, please refer to "On-Screen Keyboard".

Press the

/

buttons to choose [OK] , and then press the

button.

Caution

If the following screen appears, press the / buttons, the screen for step 4 will appear.

4. Press the / buttons to choose [ ] , press the button.

Caution

If the [Connection history] is set to [Hide], in the [

1 ] menu, [Wireless communication settings] ⋗ [Wi-Fi settings], the hisotry will not be displayed.

5. Press the / buttons to choose [Register a device for connection] , press the button.

6. Press the / buttons to choose [Do not display] , press the button.

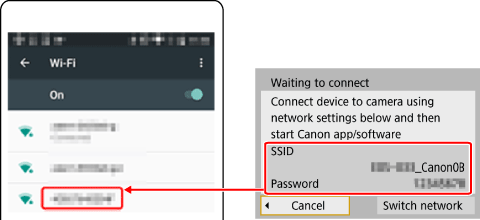

7. The SSID ( ) and password ( ) will be displayed on the screen.

8. Turn Wi-Fi settings to ON in your smartphone, choose the SSID ( ) from step 7.

9. Input password from step 7 ( ) .

10. Once the connection between the camera and the smartphone has been confirmed, press the home button to return to the home screen.

11. Touch the [Camera Connect] ( ) application icon on the smartphone to start Camera Connect.

12. After the camera is recognized, a camera selection screen is displayed.

Touch the camera to connect.

13. Press the / buttons to choose [OK] , press the buttons.

14. The camera screen will show [Wi-Fi on] .

15. Choose [Images on camera] in Camera Connect.

16. Use the smartphone to import images from the camera to the smartphone.

Touch [Select] in the upper right of the screen.

17. After the screen refreshes, choose the desired images (), and then touch [ ] on the bottom of the screen ().

To select all images at once, press the [

] icon in the upper right of the screen, and then touch [

] on the right to save them on your smartphone.

Caution

A screen to set [Image save size] may be displayed, so choose an option and press [OK].

18. After the images have been saved, touch [ ] appearing in the upper right of the screen.

19. Touch [ ] in the upper left of the screen to return to the menu screen.

20. To end the connection, touch the [ ] icon displayed in the upper right of the screen.

21. Touch [Yes].

Using the On-Screen Keyboard

Use the on-screen keyboard to enter information. Note that the length and　type of information you can enter varies depending on the function you　are using.

	•Entering characters Press the / / / buttons or turn the dial to choose the key of your desired character, and then press the button.
	•Moving the cursor Choose [ ] or [ ] and press the button.
	•Switching input modes Choose [ ] , press the button to switch to capital letters. Choose [ ] , press the button to switch to numbers and characters.
	•Deleting characters Choose [ ] and press the button. The previous character will be deleted.
	•Confirming input After pressing the button, press the / buttons to choose [OK] , press the button.
