FAQs & troubleshooting

How to Transfer Images to the Computer Using Image Transfer Utility 2 (Wi-Fi) (Windows 7)

Content Id: 8204066100

Solution

Getting Started
Step 1 : Intalling Image Transfer Utility 2
Step 2 : Connecting the Camera to the Computer
Step 3 : Setting Up Auto Image Transfer
Step 4 : Sending Images to the Computer
Using the On-Screen Keyboard

Getting Started

How to send images from the camera to a computer using Image Transfer Utility 2.

Caution

In the following explanation, computer setting procedures are indicated by the

icon, and camera setting procedures are indicated by the

icon.

Step 1 : Intalling Image Transfer Utility 2

1. Download the software [ Image Transfer Utility 2 ] from the Canon homepage on to your computer, and proceed to installation.

2. Once the installation is complete, the settings window for [ Image Transfer Utility 2 ] will be displayed, click [ Next ] .

3. [ Preparation ] will be displayed, read the details carefully and click [ Next ] .

4. [ Pairing Setup ] will be displayed. Keep the screen as it is displayed, and move on to the next step.

Step 2 : Connecting the Camera to the Computer

1. Press the button.

2. When the [ Nickname ] screen appears, press the button.

3. Confirm the Nickname (Name of the camera). After confirmation, press the button.

Caution

Nicknames are 1 – 8 characters and can be changed later.

4. Press the / buttons to choose [ OK ] , press the button.

5. Press the button.

Return to the function settings menu.

6. Press the / buttons to choose [ ] , press the button.

7. Press the / buttons to choose [ 1 ] .

8. Press the / buttons to choose [ Wireless communication settings ] , press the button.

9. Press the / buttons to choose [ Wi-Fi settings ] , press the button.

10. Press the / buttons to choose [ Auto send images to computer ] , press the button.

Caution

If [ Wi-Fi ] settings has [ Disable ] selected, change settings to [ Enable ] .

11. Press the / buttons to choose [ Auto send ] , press the button.

12. Press the / buttons to choose [ Enable ] , press the button.

13. Press the / buttons to choose [ OK ] , press the button.

14. Click [Start] ( ) , and then select [Control Panel].

15. Under [Network and Internet], click [View network status and tasks].

16. Click [Wireless Network Connection].

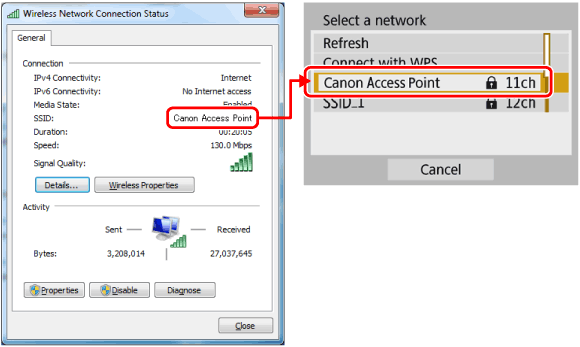

17. Select the SSID that matches with the one shown in [SSID:], and then press the button. (See the SSID example below).

18. Click [Wireless Properties].

19. Click the [Security] tab.

20. Tick the [Show characters] checkbox.

21. On the [ Password ] screen, press the button.

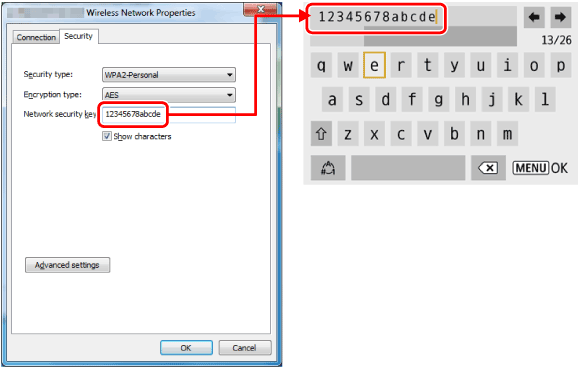

22. Enter the password displayed in the [Network security key]. (See the password example below).

For information on how to use the on-screen keyboard, see [Using the On-Screen Keyboard].

Press the

button after the letters have been confirmed, before returning to the previous screen.

23. After the password has been entered, press the / buttons to choose [ OK ] , press the button.

24. Click [Cancel].

25. Click [Close].

26. Close [Network and Sharing Center].

27. Press the / buttons to choose Key index, press the button. (This screen may or may not be displayed)

Press the

buttons to choose [ OK ] , press the

button to go to the next step.

28. Press the / buttons to choose [ Auto setting ] , press the button.

Press the

buttons to choose [ OK ] , press the

button to go to the next step.

29. The computer name will appear. Confirm that the name displayed on the [ Pairing Setup ] screen is the same, press the button.

30. If the camera Nickname is displayed under [ Procedure for this screen ] , select camera and click on [ Pairing ].

31.　Once pairing is complete, the [ Setup Complete ] window will appear, click [ OK ] .

32. The [ Waiting ] window will appear for Image Transfer Utility 2. To continue transfering images from the camera, stay on this screen and wait.

Caution

To save images in a different folder, click on the computer icon to open [ Set Destination Folder ] window.

Step 3 : Setting Up Auto Image Transfer

1. Choose [ ] menu ⋗ [Wireless communication settings] ⋗ [Wi-Fi settings] ⋗ [Auto send images to computer].

2. Choose [ Image sending options ] .

3. In [Image sending options], specify the transfer conditions.

4. Make sure the camera is off.

Step 4 : Sending Images to the Computer

1. Confirm that the Image Transfer Utility 2 window shows [ Waiting ] .

2. The images will automatically transfer to the computer once the camera has been turned on within range of the access point.

3. To confirm the transferred images, click [ Open Destination Folder ] .

The images will now be automatically transferred to the computer everytime, once the camera is turned on within range of the access point. If auto-transfer does not start, restart the camera.

Caution

When using auto image transfer, ensure that the battery pack has sufficient charge. Power saving on the camera is deactivated.

Any images captured after auto image transfer are not sent to the computer then. They are sent automatically when the camera is restarted.

Caution

Auto image transfer to a computer is triggered by camera startup within range of the access point. If auto image transfer does not begin automatically, try restarting the camera.

To stop sending images automatically, choose [Auto send images to computer] ⋗ [Auto send] ⋗ [Disable].

Once Image Transfer Utility 2 is installed, it will continue to work unless the software has been closed.

Click on

of the Image Transfer Utility 2 screen, choose [ Quit ] , this will disable auto-transfer even when the camera is turned on. To Enable wireless transfer again, turn on Image Transfer Utility 2.

Using the On-Screen Keyboard

Use the on-screen keyboard to enter information. Note that the length and type of information you can enter varies depending on the function you

are using.

	• Entering characters Press the / / / buttons or turn the dial to choose the key of your desired character, and then press the button.
	•Moving the cursor Choose [ ] or [ ] and press the button.
	•Switching input modes Choose [ ] , press the button to switch to capital letters. Choose [ ] , press the button to switch to numbers and characters.
	•Deleting characters Choose [ ] and press the button. The previous character will be deleted.
	•Confirming input After pressing the button, press the / buttons to choose [OK] , press the button.
