Setting the printer in the access point mode
When you set your printer in the access point mode, you can print wirelessly and directly from an external device such as a smartphone without using an access point.
(A) External device such as a smartphone
(B) Printer
Cause and solution
Before Starting Access Point Mode Setup
Caution
When you use the printer in the access point mode, note the following limitations:
-Using the operation panel of the printer (ex: copying or scanning)
-Connecting the printer to the Internet
-Changing the printer network settings or displaying the network settings
Caution
If you have an access point (not the printer in the access point mode), the above limitations are not applicable.
Set up your printer while referring to " Wireless LAN connection of your printer to an access point. "
After setup of the printer, see "Printing or scanning from an external device such as a smartphone using PIXMA Printing Solutions (PIXMA Print)" and enjoy printing and scanning.
Cause and solution
1. If the HOME button (B) on the printer is lit, touch the HOME button.
Cause and solution

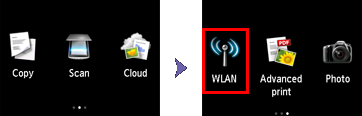

2. Flick the screen left or right, then tap the WLAN icon.
Cause and solution
3. Tap [ Access point mode ].
The (blue) Wi-Fi lamp (C) lights up when wireless connection is enabled.
Cause and solution
4. Tap [ OK ].
The printer goes in the access point mode.
Cause and solution
5. Write down the displayed SSID.
Cause and solution
6. Tap [ Details ].
Cause and solution
7. Write down the displayed password.
Cause and solution
8. In the Wi-Fi setting screen of your external device such as a smartphone, select the SSID and enter the password (you wrote down in Steps 5 and 7) to complete the connection.
The Wi-Fi setting screen will vary according to the device you use. (This is an example of an iOS device.)
Cause and solution

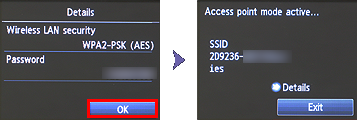

9. Tap [ OK ]. When "Access point mode active" is displayed, the printer is properly set in the access point mode.
Cause and solution
Printing or scanning from an external device such as a smartphone using PIXMA Printing Solutions (PIXMA Print)
To print or scan from an external device such as a smartphone, you need to use the application software, "PIXMA Printing Solutions."
Download and install this free application software from App Store or Google Play.
Caution
When you use an Android device with the printer in the access point mode, you will not be able to connect to the Internet using the 3G line.
To download PIXMA Printing Solutions from Google Play, make the printer exit from the access point mode, download the application software, and set the printer in the access point mode again.
Caution
From the iOS devices (iPhone, iPad, iPod touch), you can print using their standard application software (Safari or mailer software, etc.) without using PIXMA Printing Solutions.
Cause and solution
Following the procedures below, select the printer to use and perform printing or scanning:
Cause and solution
1. On the screen of an external device such as a smartphone, tap the PIXMA Print icon
Cause and solution
2. On the PIXMA Printing Solutions screen, tap the printer icon
Cause and solution
3. Tap [ Detect Printer ].
Cause and solution
4. In the screen, select the printer you use.
Cause and solution
5. When the selected printer name is displayed under the printer icon, the settings are completed.
Cause and solution
6. Tap the button you would like to perform.
Caution
Where the scanned images are saved:
When [ Scan ] is tapped, the menu to select the file format of scanned image is displayed. The scanned images are saved to the predetermined area according to the selected file format.
- JPEG files of scanned images are saved under [ Photo Print ].
- PDF files of scanned images are saved under [ Document Print ].
- JPEG files of scanned images are saved in the /CanonIJ/scan_image folder.
- PDF files of scanned images are saved in the / CanonIJ /scan_pdf folder.
Cause and solution

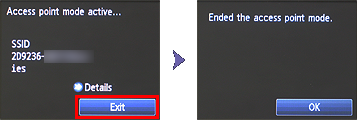

7. After printing or scanning is finished, tap [ Exit ] on the printer operation panel to exit from the access point mode.
