Name of components and information displayed on the screen (PowerShot S120)

Content Id: 8201910800

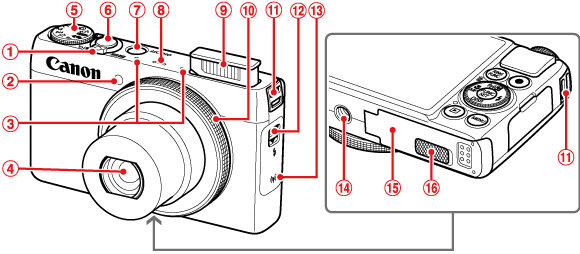

	Zoom lever Shooting: < (telephoto)> / < (wide angle)> Playback: < (magnify)> / < (index)>		Flash
	Lamp		Control ring
	Microphone		Strap mount
	Lens		< (Flash up)> switch
	Mode dial		Wi-Fi antenna area
	Shutter button		Tripod socket
	Power button		Memory card/battery cover
	Speaker		DC coupler terminal cover

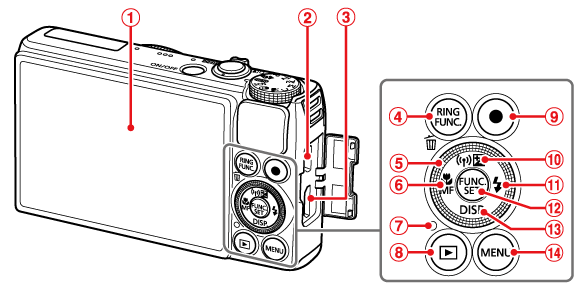

	Screen (LCD monitor)*		< (Playback)> button
	DIGITAL terminal		Movie button
	HDMITM terminal		< (Exposure compensation)> / < (Wi-Fi)> / Up button
	< (Ring function selector)> / button		< (Flash)> / Right button
	Control dial		FUNC./SET button
	< (Macro)> / < (Manual focus)> / Left button		< (Display)> / Down button
	Indicator		<> button

*Gestures may not be detected as easily if you apply a screen protector. In this case, increase the sensitivity of the touch-screen panel

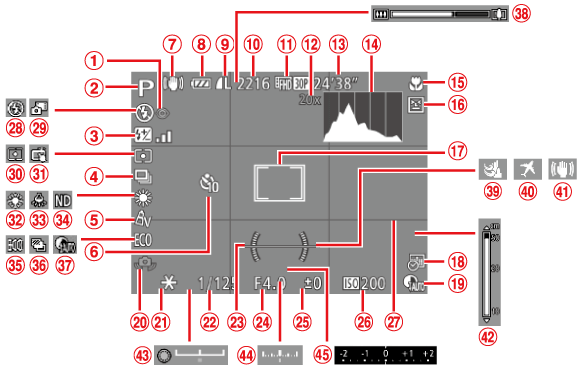

	Red-eye correction		Electronic level
	Shooting mode, Scene icon		Aperture value
	Flash exposure compensation / Flash output level		Exposure compensation level
	Drive mode		ISO speed
	My Colors		Grid lines
	Self-timer		Flash mode
	IS mode icon		Hybrid Auto mode
	Battery level		Metering method
	Compression (image quality) / Resolution, RAW		Touch Shutter
	Recordable shots		White balance
	Movie resolution		Mercury lamp correction
	Digital zoom magnification, Digital tele-converter		ND filter
	Remaining time		Eco mode
	Histogram		AEB shooting, Focus bracketing
	Focusing range, AF lock		Shadow correction
	Blink detection		Zoom bar
	AF frame, Spot AE point frame		Wind filter
	Date stamp		Time zone
	DR correction		Image stabilization
	Camera shake warning		MF indicator
	AE lock, FE lock		Exposure shift bar
	Shutter speed		Exposure level
			Exposure compensation bar

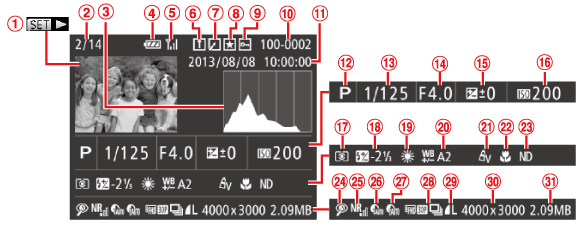

	Movies		Metering method
	Current image no. / Total no. of images		Flash exposure compensation / Flash output level
	Histogram		White balance
	Battery level		White balance correction, Mercury lamp correction
	Wi-Fi signal strength		My Colors
	Image Sync		Focusing range
	Image editing		ND filter
	Favorites		Red-eye correction
	Protection		High ISO NR
	Folder number - File number		DR correction
	Shooting date/time		Shadow correction
	Shooting mode		Group playback, Image quality / Frame rate (movies)
	Shutter speed		Compression (image quality) / Resolution, Digest movies, RAW, MP4 (movies)
	Aperture value		Still images: Resolution / Movies: Playback time
	Exposure compensation level, Exposure shift level		File size
	ISO speed, Playback speed
