Solution
Setting the IPv4 AddressSetting the IPv6 Address
Confirming IP Address Settings
Checking the Network Connection
Setting the IPv4 Address
Caution
Before changing settings:
When using DHCP, BOOTP, or RARP:
When using DHCP:
- Specifying the DNS Dynamic Update function
- Specifying the settings so that the same IP address is always assigned when the machine starts up
The IP address obtained by DHCP, BOOTP, or RARP:
By default, the IPv4 address is obtained automatically.
The procedure below describes how to manually specify this IP address.
Caution
When the setup is complete:
1. Press [ ] (Menu).
2. Press [ ] or [ ] to highlight ⋖Network Settings⋗, and then press [OK].
If a System Manager PIN is specified:
Use the numeric keys to enter the System Manager PIN, and then press [OK].
3. Press [ ] or [ ] to highlight ⋖TCP/IP Settings⋗, and then press [OK].
4. Press [ ] or [ ] to highlight ⋖IPv4 Settings⋗, and then press [OK].
5. Press [ ] or [ ] to highlight ⋖IP Address Settings⋗, and then press [OK].
6. Press [ ] or [ ] to highlight the method for setting the IP address.
<Auto Obtain> | Set the IP address using any of DHCP, BOOTP, RARP or Auto IP. |
<Manual Obtain> | Manually assign an IP address for the machine. This setting can be specified only when <Select Protocol> and <Auto IP> in <Auto Obtain> are set to <Off>. |
7. Change the IP address settings.
For ⋖Auto Obtain⋗:
7-A-1. Change ⋖Auto Obtain⋗ settings.
- ⋖Off⋗
Set the IP address settings not to obtain the IP address automatically.
- ⋖DHCP⋗
Obtains the IP address using DHCP. (The DHCP server needs to be running.)
- ⋖BOOTP⋗
Obtains the IP address using BOOTP. (The BOOTP daemon needs to be running.)
- ⋖RARP⋗
Obtains the IP address using RARP. (The RARP daemon needs to be running.)
- ⋖Off⋗
Set the IP address settings not to obtain the IP address automatically.
- ⋖On⋗
The machine obtains the IP address automatically.
7-A-2. Press [ ] or [ ] to highlight ⋖Apply⋗, and then press [OK].
For ⋖Manual Obtain⋗:
This setting can be specified only when ⋖Select Protocol⋗ and ⋖Auto IP⋗ in ⋖Auto Obtain⋗ are set to ⋖Off⋗.
7-B-1. Enter the IP address.
After it has been entered, press [OK].
7-B-2. Enter the subnet mask.
After it has been entered, press [OK].
7-B-3. Enter the gateway address.
After it has been entered, press [OK].
8. Press [ ] (Menu) to close the Menu screen.
9. Restart the machine.
It is necessary to restart the machine to take effect the settings.
Turn OFF the machine and wait for at least 10 seconds before turning it back ON.
Setting the IPv6 Address
Caution
IPv6:
Addresses that you cannot enter in [IP Address] and [Default Router Address].
Caution

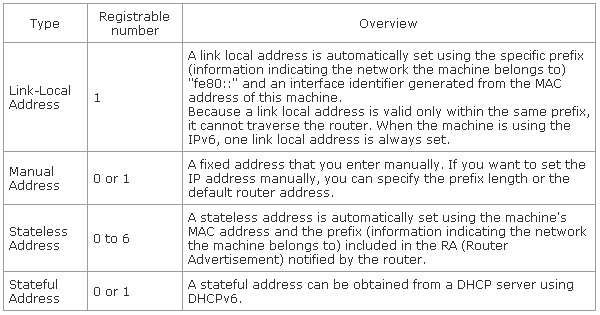

IPv6 address:
Stateless Address:
Specify the IPv6 settings using the Remote UI after specifying the IPv4 settings.
Caution
When the setup is complete:
1. Start the Remote UI and then log on in system manager mode.
For details on the procedures for starting the Remote UI, see the "e-Manual" (HTML manual) in the CD-ROM supplied with the machine.

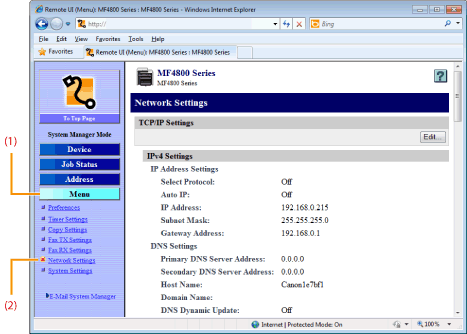

2. Click [Menu] -⋗ [Network Settings].

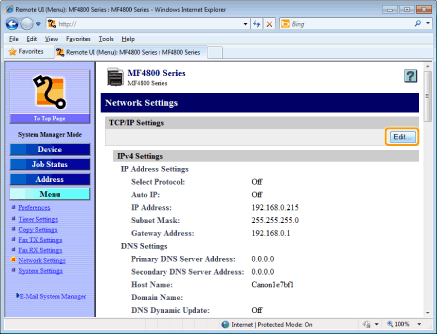

3. Click [Edit] at the right side of [TCP/IP Settings].
4. Select the [Use IPv6] check box.
5. Specify the stateless address.
Clear the [Use Stateless Address] check box when not using the stateless address.

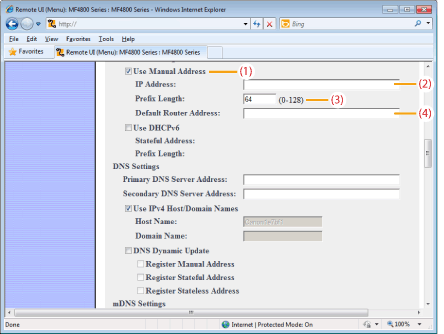

6. When using the manual address, perform the following settings.
When not using the manual address, proceed to step 7.
(1) Select the [Use Manual Address] check box.
(2) Enter [IP Address].
(3) Enter [Prefix Length].
(4) Enter [Default Router Address] as needed.

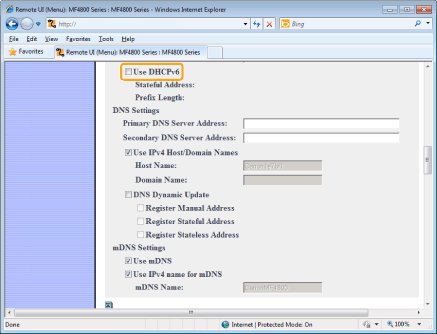

7. Set DHCPv6.
When using the stateful address, select the [Use DHCPv6] check box.

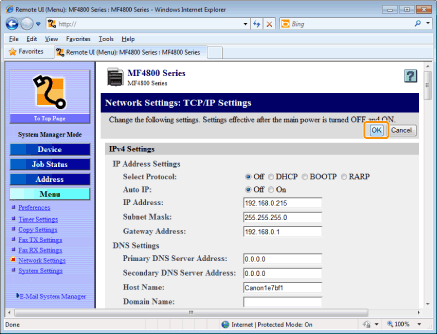

8. Click [OK].
9. Restart the machine.
It is necessary to restart the machine to take effect the settings.
Turn OFF the machine and wait for at least 10 seconds before turning it back ON.
Confirming IP Address Settings
Caution
If the machine is not connected to the network properly:
When the startup time setting is specified:
When the machine is connected to a switching hub:
Confirming IPv4 address settings
1. Press [ ] (Status Monitor/Cancel).
2. Press [ ] or [ ] to highlight ⋖Network Information⋗, and then press [OK].
3. Press [ ] or [ ] to highlight ⋖IPv4⋗, and then press [OK].
4. Press [ ] or [ ] to highlight the options you want to confirm, and then press [OK].
5. View the information.
6. Press [ ] (Status Monitor/Cancel) to close the screen.
Confirming IPv6 address settings
1. Press [ ] (Status Monitor/Cancel).
2. Press [ ] or [ ] to highlight ⋖Network Information⋗, and then press [OK].
3. Press [ ] or [ ] to highlight ⋖IPv6⋗, and then press [OK].
4. Press [ ] or [ ] to highlight the options you want to confirm, and then press [OK].
5. View the information.
6. Press [ ] (Status Monitor/Cancel) to close the screen.
Checking the Network Connection
Caution
If the network startup time setting for the machine is specified:
If the machine is connected to a switching hub:
Make sure that the network settings are correctly specified.
1. Press [ ] (Menu).
2. Press [ ] or [ ] to highlight ⋖Network Settings⋗, and then press [OK].
If a System Manager PIN is specified:
Use the numeric keys to enter the System Manager PIN, and then press [OK].
3. Press [ ] or [ ] to highlight ⋖TCP/IP Settings⋗, and then press [OK].
4. Press [ ] or [ ] to highlight ⋖IPv4 Settings⋗, and then press [OK].
5. Press [ ] or [ ] to highlight ⋖PING Command⋗, and then press [OK].
6. Enter an arbitrary IPv4 address existing on the network.
After it has been entered, press [OK].
7. Confirm the response.
If the network connection is confirmed:
The message ⋖Received response from host.⋗ will be displayed.
If the network connection is not confirmed:
The message ⋖No response from host.⋗ will be displayed. Recheck your network settings.
8. Press [ ] (Menu) to close the screen.
