Solution
Getting StartedStep 1-A: Displaying by Using the NFC Function
Step 1-B: Displaying by Entering an IP Address
Step 2: Viewing an album from a smartphone or the tablet
Step 3: Uploading Images from a smartphone or the tablet
Caution
Caution
Browsers (as of March 2017)
The following operating systems and Web browsers have been confirmed to be compatible with Connect Station. Depending on your environment, operation may differ.
* Operation on the above operating systems and Web browsers cannot be guaranteed for all the terminals.
* If JavaScript is disabled by the Web browser setting, images will not be displayed properly.
Getting Started
You can use the Connect Station’s remote control to perform operations while using a TV as a monitor.
Power button | Turn on the power or put Connect Station into the standby state. | |
Cross keys | ||
Menu button | Menu screen appears. | |
Back button | Previous screen reappears | |
Set button | Selected item takes effect. | |
Home button | Home screen appears. | |
Remote control transmitter |
There are two methods for viewing images in albums on your mobile device. Please select the option below which corresponds to the specifications of your device:
Operation using the NFC function cannot be guaranteed for all the terminals. If you cannot display the operation screen using the NFC function, see Step 1-B: Making connections by entering the IP address
Step 1-A: Displaying by Using the NFC Function
An NFC-compatible Android smartphone or tablet (OS version 4.2 or later) supporting Android Beam allows you to display the operation screen by using the NFC function.
Caution
1. Operate the terminal to connect to the access point, router, etc. to which Connect Station is connected.
For more information on the connection method for your device, please refer to the device’s instruction manual.

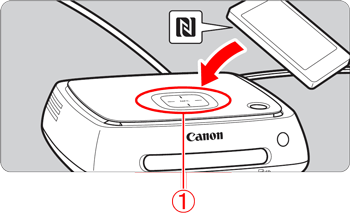

2. Hold the terminal close to the NFC connect point on Connect Station.
Carefully hold the n on the terminal close to the NFC connect point on Connect Station.
: NFC touchpoint
3. Connect Station gives two short beeps, and the Wi-Fi lamp blinks twice. If the browser on the terminal starts and the login screen is displayed, communication is established via Wi-Fi even if the terminal is moved away from Connect Station.

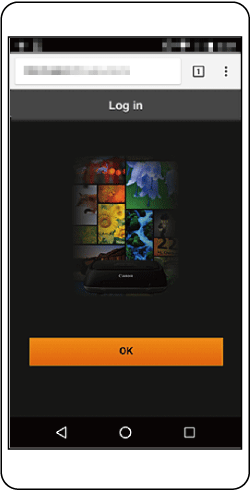

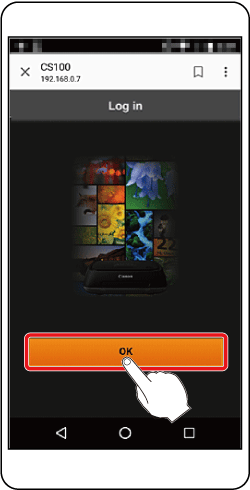

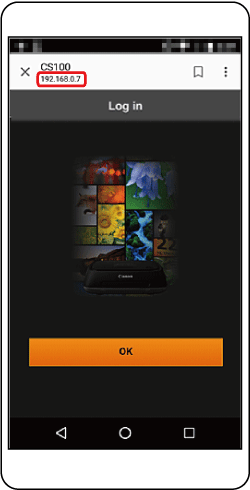

4.On the terminal screen, select [OK].

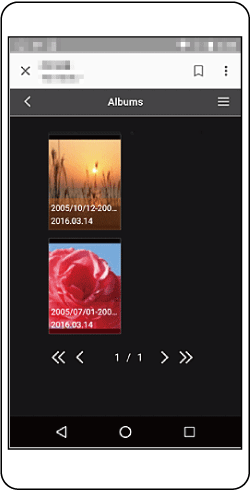

5.The album list screen will appear.
Proceed to Step 2: Viewing an album from a smartphone or the tablet
Step 1-B: Displaying by Entering an IP Address
If the terminal does not support NFC, display the operation screen by entering an IP address into the Web browser.
1. Press the [ ], [ ] keys on the remote control to select [Preferences] on the Home screen.
2. Confirm the IP address.

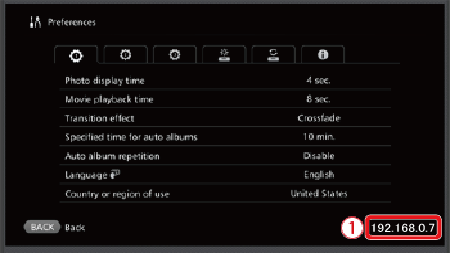

The number displayed on the lower right of the [Preferences] screen is the IP address.
: IP address (Example)
3. Operate the terminal to connect to the access point, router, etc. to which Connect Station is connected.
4. Start the Web browser on the terminal.
5.Select [OK] on the device’s screen.

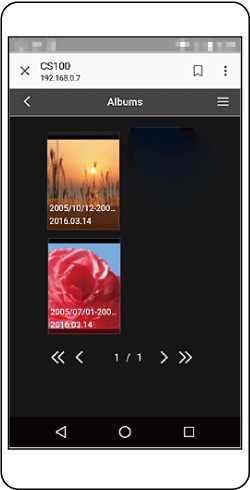

6.The album list screen will appear.
Step 2: Viewing an album from a smartphone or the tablet
View an album in Connect Station by using the Web browser on the terminal.
How to Operate the Screen

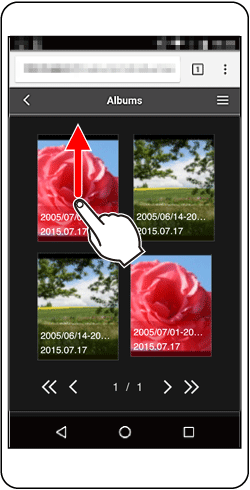

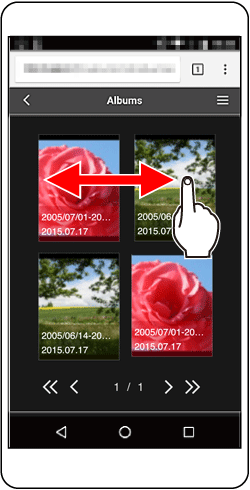

Flick
Tap

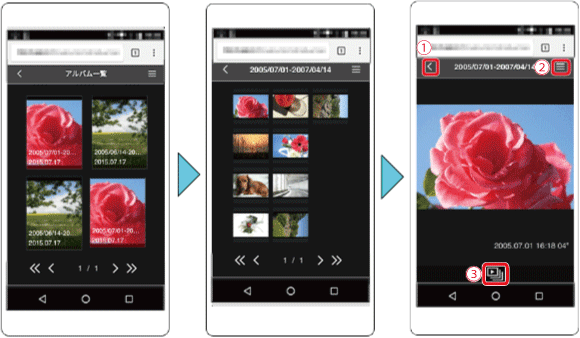

Albums ⋗ Thumbnail display ⋗ Single-image display
: Back

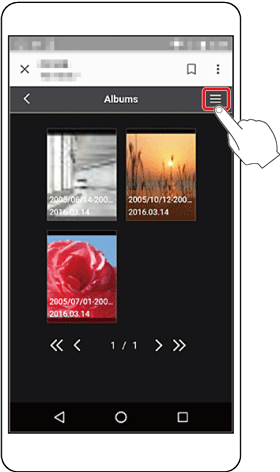

: Menu
: Slide show
Single-image display ⋗ Thumbnail display ⋗ Albums ⋗ Login screen
Caution
Step 3: Uploading Images from a smartphone or the tablet
Import still photos on a smartphone or tablet to Connect Station.
Caution

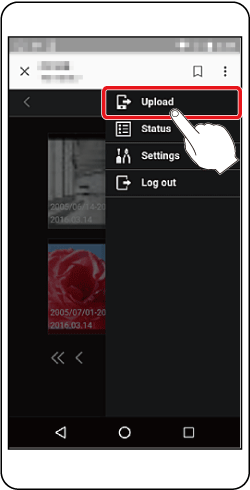

1.Display the upload screen on the smartphone or tablet.

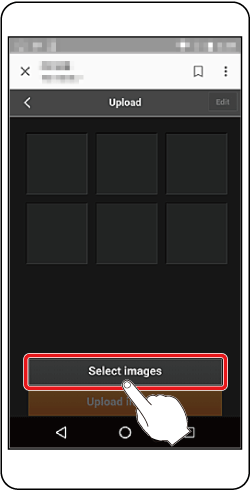

2.Select [Select images].

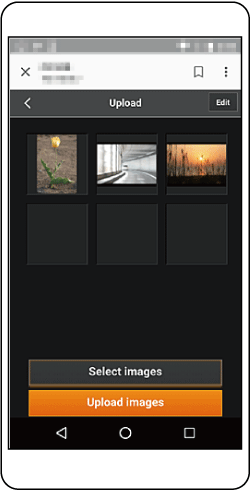

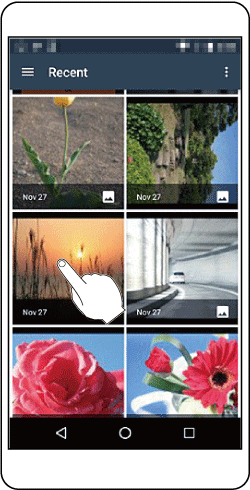

3.Select an image.

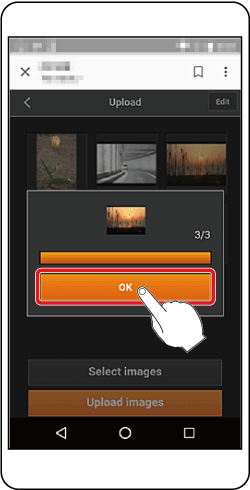

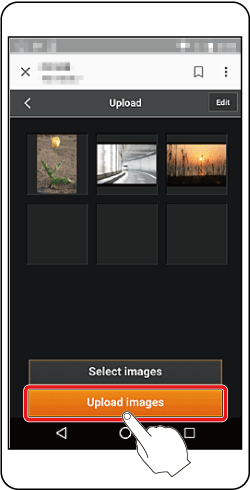

4.Select [Upload images].

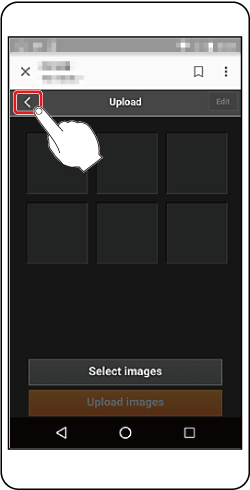

5.Exit the upload screen.
By selecting [ ] on the upper left of the screen, you can return to the previous screen.
