Solution
Getting StartedDisplaying by Entering an IP Address
Viewing an Album From the Computer
Uploading Still Photos From the Computer
You can view albums and upload still photos from a computer or other terminals. To perform an operation, display the operation screen in the Web browser on the computer.
Caution
Caution
Browsers (as of March 2017)
The following operating systems and Web browsers have been confirmed to be compatible with Connect Station. Depending on your environment, operation may differ.
-Windows 10, Windows 8.1, Windows 7: Chrome
-Mac OS X 10.11/10.12: Safari (The function is not available when Private Browsing is enabled.)
* Operation on the above operating systems and Web browsers cannot be guaranteed for all the terminals.
* If JavaScript is disabled by the Web browser setting, images will not be displayed properly.
Getting Started
You can use the Connect Station’s remote control to perform operations while using a TV as a monitor.
Power button | Turn on the power or put Connect Station into the standby state. | |
Cross keys | ||
Menu button | Menu screen appears. | |
Back button | Previous screen reappears. | |
Set button | Selected item takes effect. | |
Home button | Home screen appears. | |
Remote control transmitter |
Displaying by Entering an IP Address
Display the operation screen by entering an IP address into the Web browser.
1.Select [Preferences] on the Home screen and press the [SET] button.
2.Check the IP address.

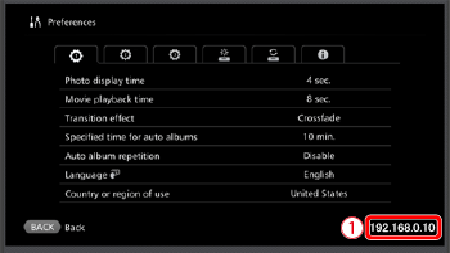

The number displayed on the lower right of the [Preferences] screen is the IP address.
: Example of an IP address
3.Operate the computer to connect to the wireless LAN router (access point) etc. to which Connect Station is connected.
Caution
For the information on how to connect a computer, refer to the manuals of your computer and wireless LAN router (access point).
4.Start the Web browser on the computer.

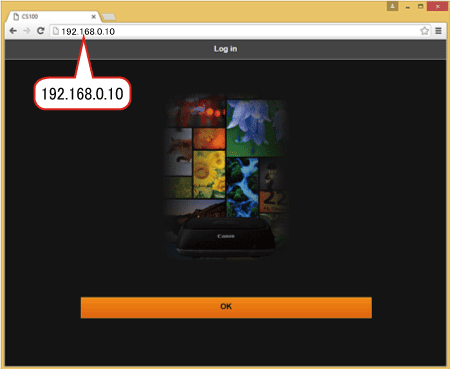

5.Enter the IP address you checked in step 2 in the address field of the Web browser.

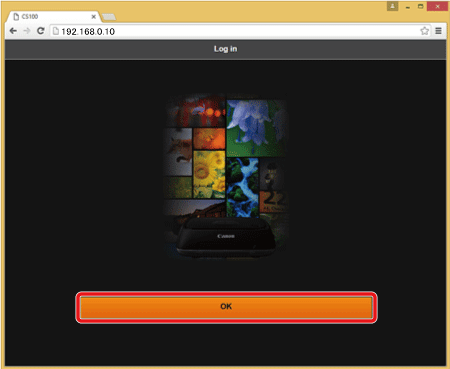

6.Select [OK] to log in to Connect Station.

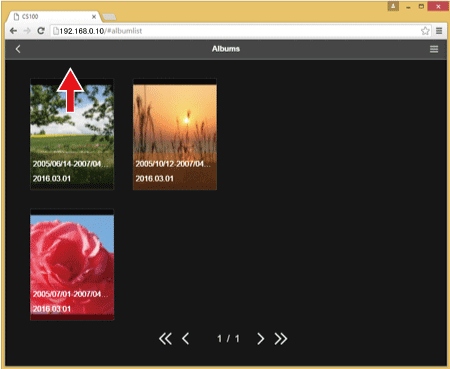

7.The album list screen will appear.
Viewing an Album From the Computer

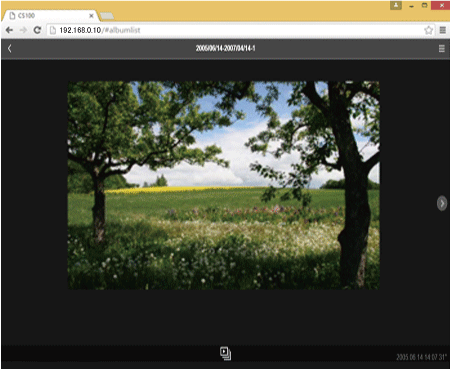

View an album in Connect Station by using the Web browser on the computer.
Caution

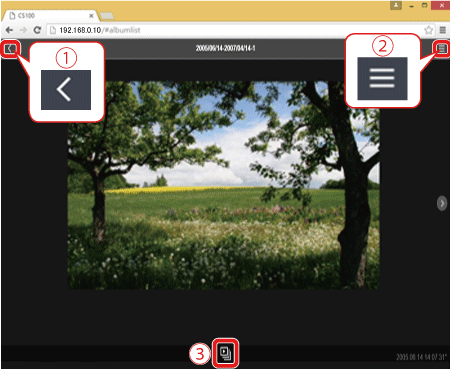

How to Operate the Screen

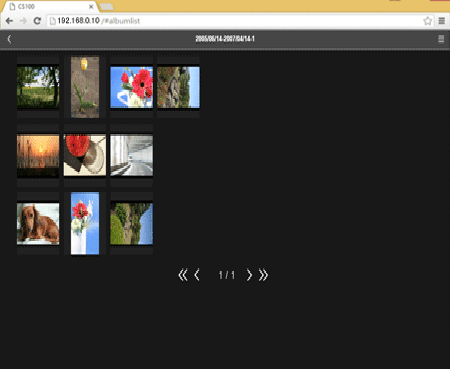

Albums -⋗ Thumbnail display -⋗ Single-image display
Single-image display -⋗ Thumbnail display -⋗ Albums -⋗ Login screen

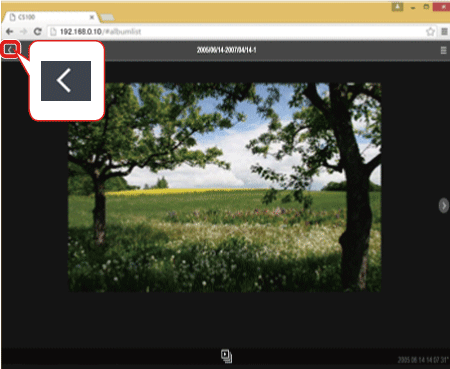

: Back
: Menu
: Slide show
Caution
Uploading Still Photos From the Computer
Import still photos on a PC to Connect Station.
Caution

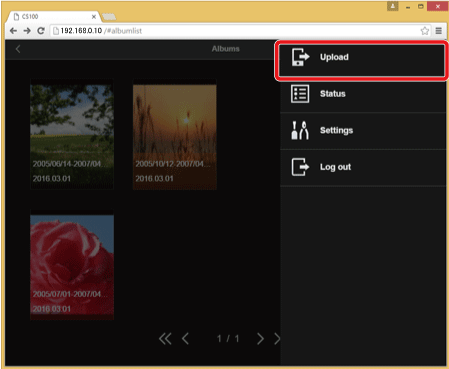

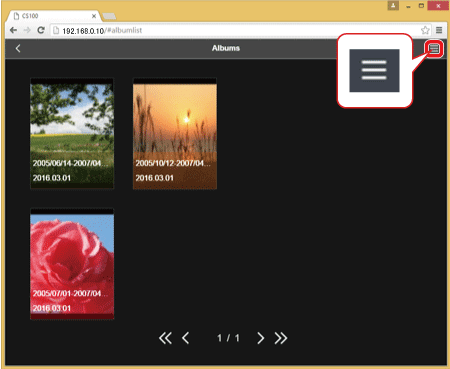

1.Select [ ] on the upper right of the screen, and then select [Upload] from the menu.
Following menu options are available.
Menu Items | Settings |
Properties | Edit the titles and comments of albums and images. ・In the thumbnail display, you can edit the titles and comments of albums. ・In the single-image display, you can edit the comment of the image. |
Upload | Import still photos on a PC to Connect Station. |
Status | Check the operation status of Connect Station, such as the remaining capacity of the hard disk and the image importing status. |
Settings | Specify the slide show playback settings. ・Slide show: Set the image transition time. ・Transition effect: Set the image transition method. |
Log out | Return to the login screen after disconnecting the connection between Connect Station and the PC. |

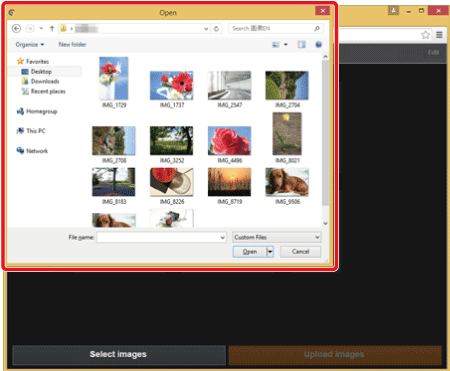

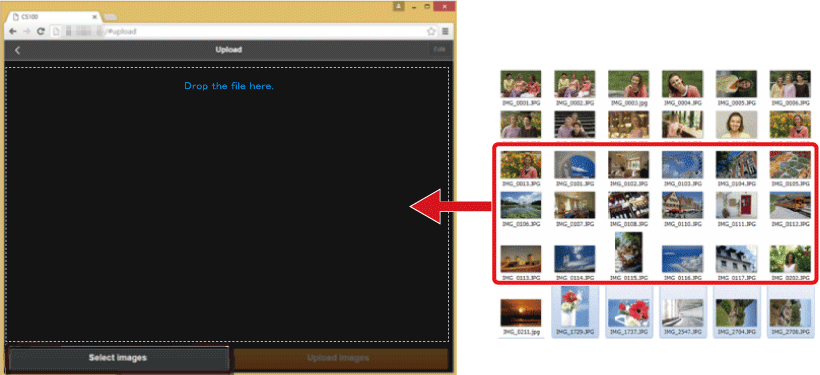

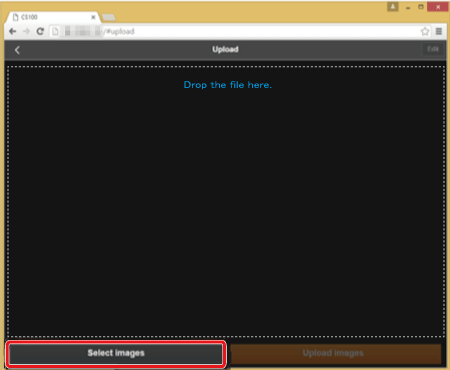

2.Select [Select images].

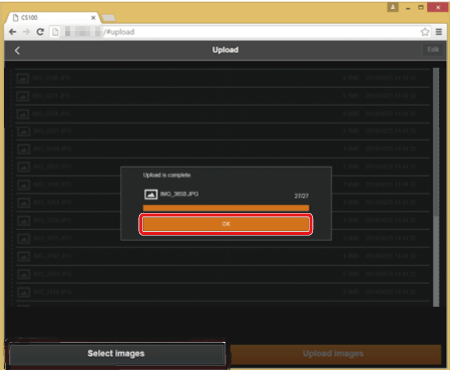

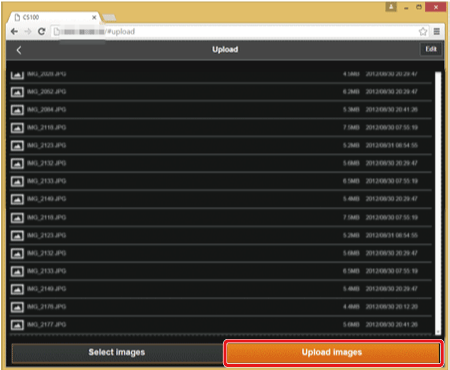

3.Select [Upload images].
Caution
Caution
Caution
4.To exit the upload screen, select [ ] on the upper left of the screen. You will return to the previous screen.

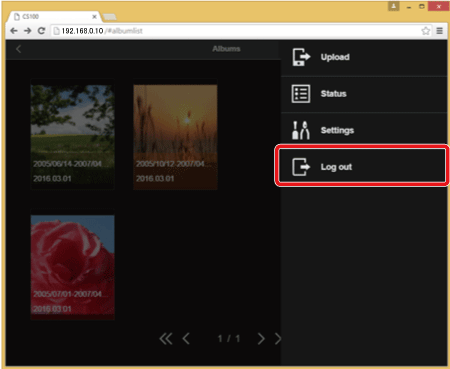

6.Select [ ] on the upper right of the screen, then select [Log out] from the menu screen to disconnect the connection between Connect Station and the computer.
This completes the steps for uploading still photos from the computer.
